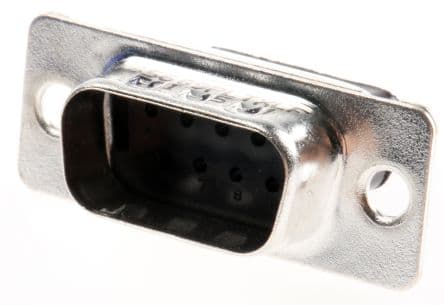

D09S24A6RL09LF

Manufacturer	Amphenol Corporation
Description	9 Position D-Sub Receptacle, Female Sockets Connector, Through Hole Solder Paste

对参数有疑问？问 AI 助手

Specifications

Mfr	Amphenol ICC (FCI)	Color	Black
Series	Delta D	Features	Board Guide
Packaging	Tray	Wire Gauge	-
Part Status	Active	Termination	Solder Paste
Contact Form	-	Contact Type	Signal
Mounting Type	Through Hole	Connector Type	Receptacle, Female Sockets
Contact Finish	Gold	Flange Feature	Housing/Shell (M3)
Number of Rows	2	Voltage Rating	300V
Backset Spacing	-	Connector Style	D-Sub
Contact Material	Copper Alloy	Ingress Protection	-
Base Product Number	D09S24	Dielectric Material	Liquid Crystal Polymer (LCP), Glass Filled
Number of Positions	9	Current Rating (Amps)	5A per Contact
Operating Temperature	-55°C	Shell Material, Finish	Steel, Nickel Plated
Contact Finish Thickness	30.0µin (0.76µm)	Material Flammability Rating	UL94 V-0
Shell Size, Connector Layout	1 (DE, E)

Documents & Media

PDF Document

c01-8646-0879.pdf

Online Document

fci?cmd=catProductDetail&showAddButton=true&productID=D09S24A6RL09LF

PDF Document

320439.pdf
