65240-004LF
| Manufacturer | |
| Description | CONN HOUSING 4POS .100" SINGLE Crimp housing 2.54 mm Poles 4 Dubox, 65240-004LF, Amphenol/FCI Amphenol FCI 65240 系列 2.54mm 节距 4 路 直 母 电缆安装 PCB 壳体 04P HOUSING |
Compliance
| Automotive | NO | Leadfree Defin | RoHS-conform |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage - Test | 1000 | Voltage Rating | 250 |
| Number of Poles | 4 | Contact Resistance | ≤15 mOhm |
| Current Rating (Max) | 3 A | Insulation Resistance | 100 GOhm |
Mechanical
| Depth | 14.01mm | Pitch | 2.54 |
| Width | 4.05mm | Length | 10.08mm |
| Packaging | BULK | Orientation | 直 |
| Pitch - Post | FEMALE | Mounting Type | 电缆安装 |
| Connector Type | 母座 | Number of Rows | 1 |
| Contact Material | Ni+Au | Housing Material | Glass fibre (GF) |
| Number of Contacts | 4 | ||
Product Info
| Series | Dubox | CAD Drawing | 3D CAD 模型 |
| Connection Method | Wire-Board | ||
Environmental
| Operating Temperature | -65...+125 °C | ||
Documents & Media
Similar Parts

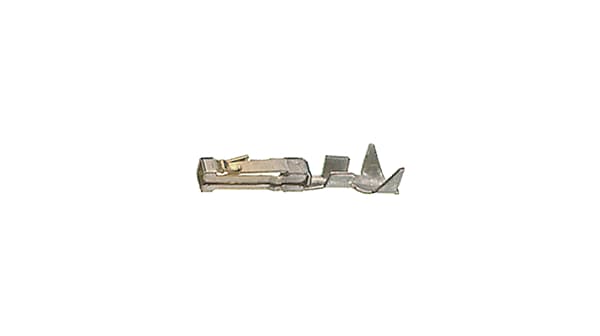

76357-301LF
Amphenol FCI
CONN SOCKET CRIMP 22-30AWG GOLD Crimp socket Female 30...22 AWG, 76357-301LF, Amphenol/FCI Amphenol FCI DUBOX 系列 母 压接接线端子, 压接, 镀金镀镍触点 CONTACT AWG 22-30
76347-401LF
Amphenol FCI
CONN SOCKET 22-30AWG TIN CRIMP CONTACT CRIMP AWG 22-30
76347-341LF
Amphenol FCI
CONN SOCKET 28-32AWG GOLD CRIMP
76347-412
Amphenol FCI
CONN SOCKET 20-22AWG TIN CRIMP
76347-401
Amphenol FCI
CONN SOCKET 22-30AWG TIN CRIMP
76347-402
Amphenol FCI
CONN SOCKET 22-30AWG TIN CRIMP
76347-403
Amphenol FCI
CONN SOCKET 22-30AWG TIN CRIMP
76347-441
Amphenol FCI
CONN SOCKET 28-32AWG TIN CRIMP
76357-401
Amphenol FCI
CONN SOCKET CRIMP 22-30AWG TIN
76347-403LF
Amphenol FCI
CONN SOCKET 22-30AWG TIN CRIMP Amphenol FCI DUBOX 系列 母 压接接线端子, 压接, 镀锡镀镍触点
76347-441LF
Amphenol FCI
CONN SOCKET 28-32AWG TIN CRIMP
76357-401LF
Amphenol FCI
CONN SOCKET CRIMP 22-30AWG TIN Amphenol FCI DUBOX 系列 母 压接接线端子, 压接, 镀锡镀镍触点
76347-411LF
Amphenol FCI
CONN SOCKET 20-22AWG TIN CRIMP
76357-411LF
Amphenol FCI
CONN SOCKET 20AWG TIN CRIMP
76347-301LF
Amphenol FCI
CONN SOCKET 22-30AWG GOLD CRIMP Amphenol FCI DUBOX 系列 母 压接接线端子, 压接, 镀金镀镍触点
76382-304
Amphenol FCI
CONN HEADER 4POS .100" R/A GOLD

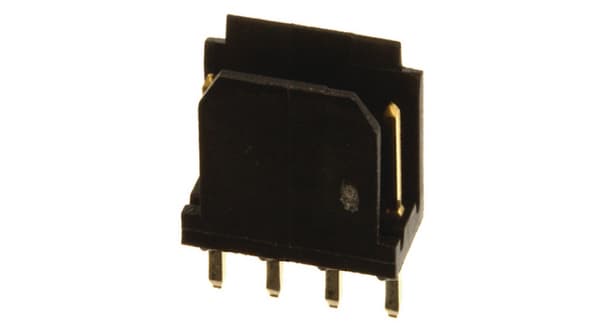

76384-304LF
Amphenol FCI
4 Positions Header, Shrouded Connector 0.100" (2.54mm) Through Hole Gold, GXT™ Pin header, Dubox 4-pin 2.54 mm Poles 4 Dubox, 76384-304LF, Amphenol/FCI Amphenol FCI Basics+, DUBOX 系列 2.54mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 04P HEADER STRAIGHT

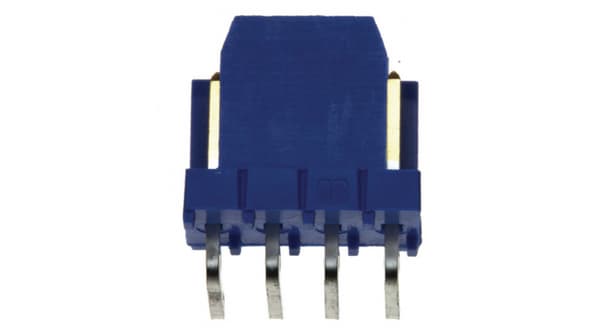

76382-304LF
