98414-F06-06LF
| Manufacturer | |
| Description | Buy now, ships today. 98414-F06-06LF - Connector Header Through Hole 6 position 0.079" (2.00mm) from Amphenol ICC (FCI). View datasheets, pricing and availability from DigiKey now! |
| Category |
Specifications
| Mfr | Amphenol ICC (FCI) | Style | Board to Board or Cable |
| Series | Minitek® 2.00mm | Features | Keying Slot |
| Packaging | Bulk | Shrouding | Shrouded - 4 Wall |
| Part Status | Active | Termination | Solder |
| Applications | - | Contact Type | Male Pin |
| Contact Shape | Square | Mounting Type | Through Hole |
| Connector Type | Header | Fastening Type | Latch Holder |
| Number of Rows | 2 | Pitch - Mating | 0.079" (2.00mm) |
| Voltage Rating | 200V (AC/DC) | Contact Material | Copper Alloy |
| Insulation Color | Cream | Insulation Height | 0.232" (5.90mm) |
| Ingress Protection | - | Base Product Number | 98414 |
| Insulation Material | Thermoplastic | Number of Positions | 6 |
| Row Spacing - Mating | 0.079" (2.00mm) | Contact Finish - Post | Tin |
| Contact Length - Post | 0.098" (2.50mm) | Current Rating (Amps) | 2A (AC/DC) |
| Operating Temperature | - | Mated Stacking Heights | - |
| Overall Contact Length | - | Contact Finish - Mating | Gold, GXT™ |
| Contact Length - Mating | 0.157" (4.00mm) | Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 | Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Finish Thickness - Mating | Flash | ||
Documents & Media
Similar Parts
69307-006LF
Amphenol FCI
CONN HOUSING 6POS 2MM W/O KEY

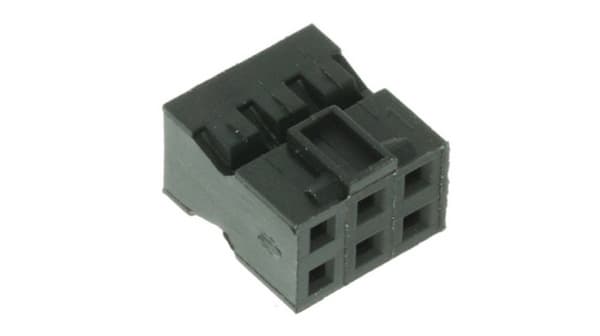

90311-006LF
Amphenol FCI
CONN HOUSING 6POS 2MM W/KEY Socket housing, Minitek 2x3-pin 2 mm Poles 2 x 3 Minitek, 90311-006LF, Amphenol/FCI Amphenol FCI 90311 系列 2 行 2mm 节距 6 路 直 电缆安装 PCB 壳体 06P CRIMP TO WIRE HOUS.MINITEK
55510-106
Amphenol FCI
6 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold
55510-006
Amphenol FCI
6 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold
55510-306
Amphenol FCI
6 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold
55510-106TR
Amphenol FCI
6 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold
55510-106TRLF
Amphenol FCI
6 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold Amphenol FCI 2行 6路 直 2mm节距 表面贴装 印刷电路板插座, 插座板
55510-106LF
Amphenol FCI
6 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold

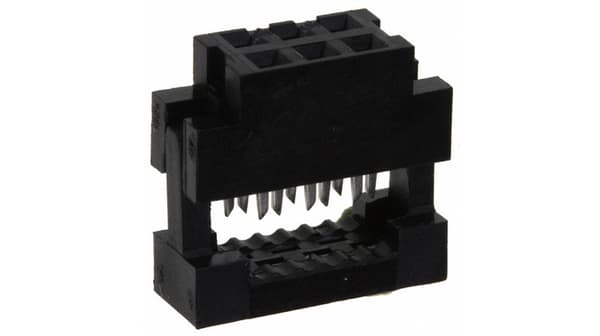

89947-706LF
