172207
| Manufacturer | |
| Description | Conn Type N RCP 0Hz to 11GHz 50Ohm Crimp ST Cable Mount Gold CONN N JACK STR 50 OHM SOLDER connector;rf coaxial;n straight crimp jack;captive contact;for lmr600;50 ohm RF Connectors / Coaxial Connectors N STRAIGHT JACK STD CABLE CRIMP connector, rf coaxial, n straight crimp jack, captive contact, for lmr600, 50 ohm 172207 Type-N Female Crimp Connector, Cable Group L2, Amphenol |
| Category |
Business
| Product | Connectors | Part # Aliases | 92C6737 |
| Product Category | RF Connectors / Coaxial Connectors | Standard Package | Bag |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Frequency | 0 to 11 GHz | Impedance | 50 Ohm |
| Voltage Rating | 1500V | Coupling Factor | Threaded |
| Frequency - Max | 11GHz | ||
Mechanical
| Packaging | Bulk | Cable Type | LMR600 |
| Body Finish | White Bronze | Cable Group | LMR-600 |
| Orientation | Straight | Termination | Crimp |
| Body Material | Brass | Housing Color | Silver |
| Mounting Type | Cable Mount | Angle of Throw | Straight |
| Connector Type | Jack, Female Socket | Contact Finish | Gold |
| Fastening Type | Threaded | Housing Finish | Nickel |
| Connector Style | N Type | Connector Usage | Threaded |
| Contact Material | Phosphor Bronze | Housing Material | Brass |
| Primary Material | N | Termination Style | Cable - Crimp |
| Shield Termination | Crimp | Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze | Supplier Device Package | Straight |
Product Info
| Type | Type N | Gender | RCP |
| Features | Heat Shrink Tubing | Polarity | Standard |
| Connection Type | LMR600 Cable | RF Family/Standard | 172207 |
| Application Specifics | Commercial | ||
Environmental
| Mating Cycles | 500 | Operating Temperature | -65°C ~ 165°C |
Documents & Media
Similar Parts
202102-10
amphenol connex
Connector Accessories N Male Cap Without Chain Brass Nickel Finish RF Connectors UHF TERMINATOR N MALE CAP NO CHAIN CONN N MALE CAP WITHOUT CHAIN RF Connector Accessories UHF TERMINATOR N MALE CAP NO CHAIN RF/COAXIAL, DUST CAP, NO CHAIN, N/UHF Coaxial/RF; Cap-NoChain; N; Protective; Male; Brass; forFemaleConn; Straight; 50Ohms CONN CAP COVER FOR N TYPE JACKS 202102-10 UHF or Type N Cap without Chain
172317
amphenol connex
Conn Type N PL ST Cable Mount Gold CONN CAP N MALE SHORTING RF Connectors / Coaxial Connectors N MALE SHORTING CAP Coaxial/RF; Cap-NoChain; N; Shorting; Male; Brass; forFemaleConnector; Straight CONN CAP CVR SHORTING FOR N JACK
202102
Amphenol Connex
RF Connectors N MALE CAP AND CHAIN CAP & CHAIN Connector Accessories Type N Male Cap And Chain CAP FOR N-TYPE PLUG WITH CHAIN connector accessory;rf coaxial;n male cap and 100mm chain;for jacks and recept RF COAXIAL, DUST CAP W/CHAIN, N MALE Coaxial/RF; Cap-w/Chain; N; Protective; Male; Brass; forFemaleConn; Straight; 50Ohms 202102 UHF or Type N Cap with Chain, Amphenol

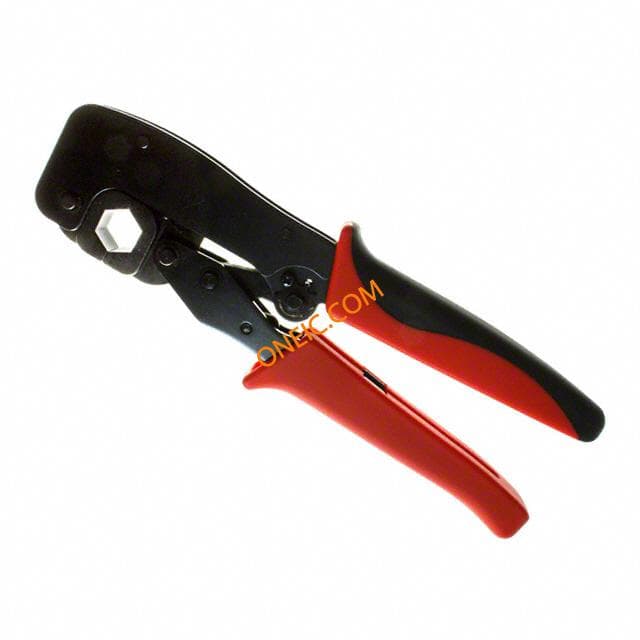

47021
