172165
| Manufacturer | |
| Description | Conn Type N F 0Hz to 11GHz 50Ohm Crimp ST Panel Mount Gold CONN N JACK STR 50 OHM CRIMP RF Connectors / Coaxial Connectors N BLKHEAD CRIMP JACK 316 DOUBLE BRAID connector, rf coaxial, n bulkhead crimp jack, rear mount, for rg316 double braid |
| Category |
Business
| Product | Connectors | Other Names | ACX1145 |
| Part # Aliases | 319-0116 | Product Category | RF Connectors / Coaxial Connectors |
| Standard Package | Bag | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Frequency | 0 to 11 GHz | Impedance | 50 Ohm |
| Voltage Rating | 1500V | Coupling Factor | Threaded |
| Frequency - Max | 11GHz | Insulation Resistance | 5000 Megohms (Min.) |
Mechanical
| Length | 1.304 in. | Diameter | 22 |
| Packaging | Bulk | Cable Type | RG-316/U Double Braid |
| Body Finish | White Bronze | Cable Group | RG-316 Double Braid |
| Orientation | Straight | Termination | Crimp |
| Weight (g): | 38.82609 | Body Material | Brass |
| Housing Color | Silver | Mounting Type | Panel Mount |
| Angle of Throw | Straight | Connector Type | Jack, Female Socket |
| Contact Finish | Gold | Fastening Type | Threaded |
| Housing Finish | Nexcote | Inner Diameter | 1.7 in. |
| Outer Diameter | 2.3 in. | Plating - Body | Nickel |
| Connector Style | N Type | Connector Usage | Threaded |
| Contact Material | Phosphor Bronze|Beryllium Copper | Housing Material | Brass |
| Length - Overall | 33.1 | Primary Material | N |
| Termination Style | Cable - Crimp | Shield Termination | Crimp |
| Contact Termination | Crimp | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Insulation Material | Polytetrafluoroethylene | Center Contact Plating | Gold |
| Center Contact Material | Brass | ||
Product Info
| Type | Type N | Gender | F |
| Features | Captivated Contact | Polarity | Standard |
| Connection Type | Flexible Cable | RF Family/Standard | 172165 |
| Application Specifics | Commercial | ||
Environmental
| Mating Cycles | 500 | Temperature Range | -65 to +165 °C |
| Ingress Protection | Weatherproof | Operating Temperature | -65°C ~ 165°C |
Documents & Media
Similar Parts

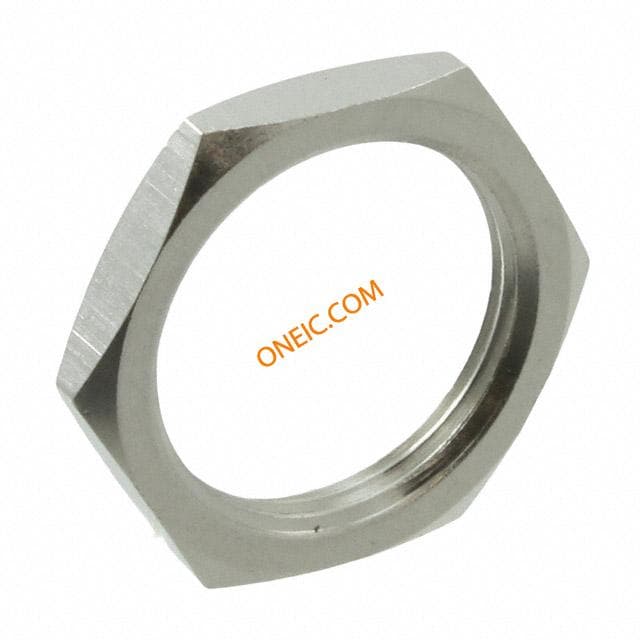

172-HEXNUT
Amphenol Connex
RF Connectors N-BULKHEAD HEXNUT NUT FOR N-TYPE BLKHD CONNECTORS Screws & Fasteners N-BULKHEAD HEXNUT
202102-10
amphenol connex
Connector Accessories N Male Cap Without Chain Brass Nickel Finish RF Connectors UHF TERMINATOR N MALE CAP NO CHAIN CONN N MALE CAP WITHOUT CHAIN RF Connector Accessories UHF TERMINATOR N MALE CAP NO CHAIN RF/COAXIAL, DUST CAP, NO CHAIN, N/UHF Coaxial/RF; Cap-NoChain; N; Protective; Male; Brass; forFemaleConn; Straight; 50Ohms CONN CAP COVER FOR N TYPE JACKS 202102-10 UHF or Type N Cap without Chain
47-10150
Amphenol Connex
Crimpers CRIMP TOOL W/DIE .178/.128/.068 TOOL CRIMP W/DIES .178/.128/.068 tool;ratcheted hand crimp tool w/die set;cavities: .178;.128;.068 (see notes) Crimp Tool With Die CRIMP TOOL W/DIE SET, RATCHET,COAXIAL CABLE tool, ratcheted hand crimp tool w/die set, cavities: .178, .128, .068 (see notes)
172317

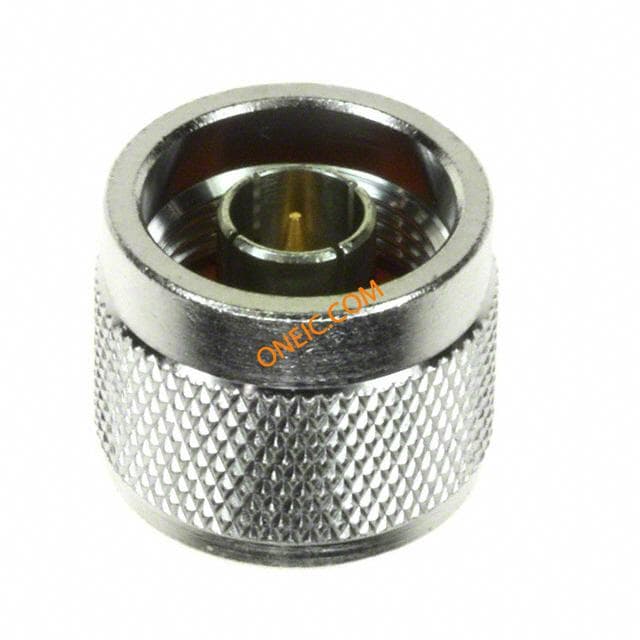

amphenol connex
Conn Type N PL ST Cable Mount Gold CONN CAP N MALE SHORTING RF Connectors / Coaxial Connectors N MALE SHORTING CAP Coaxial/RF; Cap-NoChain; N; Shorting; Male; Brass; forFemaleConnector; Straight CONN CAP CVR SHORTING FOR N JACK
47-20004
amphenol connex
Crimp Die Set Punches & Dies CRIMP DIE .178/ .128/.068 TOOL DIE SET .178/.128/.068 DIE FOR RG174, MINI 59 BNC/TNC

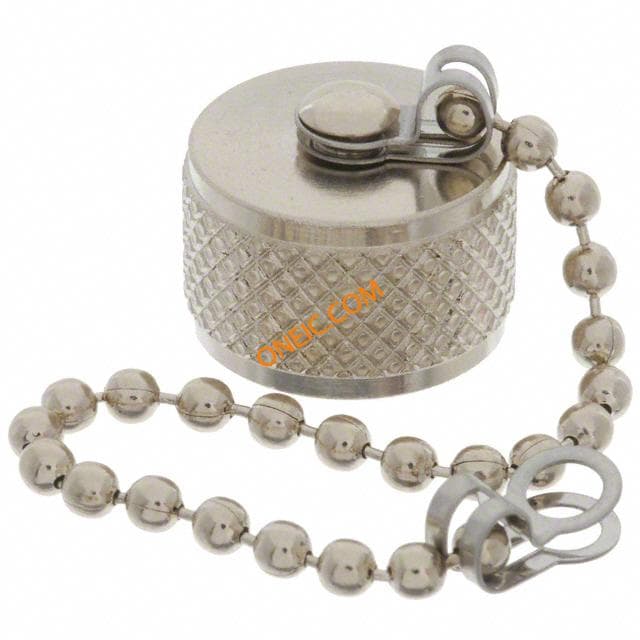

202102
