172119
| Manufacturer | |
| Description | Conn Type N RCP 0Hz to 11GHz 50Ohm Solder Pot ST Panel Mount Gold CONN N JACK STR 50 OHM SOLDER connector;rf coaxial;n panel receptacle jack;solder pot terminal;50 ohm RF Connectors / Coaxial Connectors N PANEL RECPTACLE |
| Category |
Business
| Product | Connectors | Other Names | ACX1167 |
| Part # Aliases | 319-0139 | Product Category | RF Connectors / Coaxial Connectors |
| Standard Package | Bag | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Frequency | 0 to 11 GHz | Impedance | 50 Ohm |
| Voltage Rating | 1500V | Coupling Factor | Threaded |
| Frequency - Max | 11GHz | ||
Mechanical
| Depth | 25.4 | Height | 25.4 |
| Packaging | Bulk | Body Finish | White Bronze |
| Orientation | Straight | Termination | Solder Pot |
| Body Material | Brass | Housing Color | Silver |
| Mounting Type | Panel Mount | Connector Type | Jack, Female Socket |
| Contact Finish | Gold | Fastening Type | Threaded |
| Plating - Body | Nickel | Connector Style | N Type |
| Contact Material | Phosphor Bronze|Beryllium Copper | Length - Overall | 28.7 |
| Termination Style | Solder Cup | Shield Termination | Solder |
| Contact Termination | Solder Cup | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Insulation Material | Polytetrafluoroethylene | Center Contact Plating | Gold |
| Center Contact Material | Brass | ||
Product Info
| Type | Type N | Gender | RCP |
| Polarity | Standard | Connection Type | Coaxial Cable |
| RF Family/Standard | 172119 | ||
Environmental
| Mating Cycles | 500 | Operating Temperature | -65°C ~ 165°C |
Documents & Media
Similar Parts
202102-10
amphenol connex
Connector Accessories N Male Cap Without Chain Brass Nickel Finish RF Connectors UHF TERMINATOR N MALE CAP NO CHAIN CONN N MALE CAP WITHOUT CHAIN RF Connector Accessories UHF TERMINATOR N MALE CAP NO CHAIN RF/COAXIAL, DUST CAP, NO CHAIN, N/UHF Coaxial/RF; Cap-NoChain; N; Protective; Male; Brass; forFemaleConn; Straight; 50Ohms CONN CAP COVER FOR N TYPE JACKS 202102-10 UHF or Type N Cap without Chain
172317
amphenol connex
Conn Type N PL ST Cable Mount Gold CONN CAP N MALE SHORTING RF Connectors / Coaxial Connectors N MALE SHORTING CAP Coaxial/RF; Cap-NoChain; N; Shorting; Male; Brass; forFemaleConnector; Straight CONN CAP CVR SHORTING FOR N JACK
202102
Amphenol Connex
RF Connectors N MALE CAP AND CHAIN CAP & CHAIN Connector Accessories Type N Male Cap And Chain CAP FOR N-TYPE PLUG WITH CHAIN connector accessory;rf coaxial;n male cap and 100mm chain;for jacks and recept RF COAXIAL, DUST CAP W/CHAIN, N MALE Coaxial/RF; Cap-w/Chain; N; Protective; Male; Brass; forFemaleConn; Straight; 50Ohms 202102 UHF or Type N Cap with Chain, Amphenol

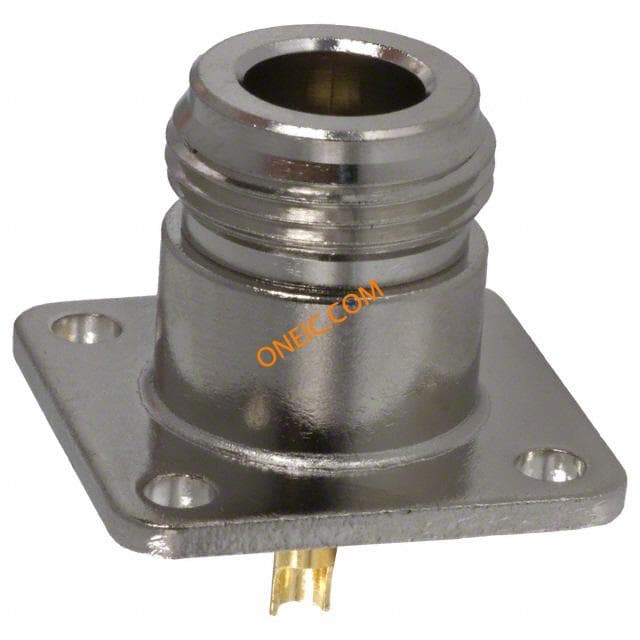

82-97-RFX
