132195
| Manufacturer | |
| Description | Conn SMA PL 0Hz to 12.4GHz 50Ohm Crimp ST Cable Mount Gold CONN SMA PLUG STR 50 OHM SOLDER connector;rf coaxial;sma str crimp plug;for rg142;223;400 cable;50 ohm RF Connectors / Coaxial Connectors SMA SR PLUG 142/55 GOLD connector, rf coaxial, sma str crimp plug, for rg142, 223, 400 cable, 50 ohm 132195 SMA Male Crimp Connector, Cable Group C1, Amphenol/Connex |
| Category |
Business
| Product | Connectors | Other Names | ACX1194 |
| Part # Aliases | 319-0154 99H5057 | Product Category | RF Connectors / Coaxial Connectors |
| Standard Package | Bag | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Frequency | 0 to 12.4 GHz | Impedance | 50 Ohm |
| Voltage Rating | 500 V | Coupling Factor | Threaded |
| Frequency - Max | 12.4GHz | ||
Mechanical
| Depth | 8 | Length | 0.717 in. |
| Weight | 0.123459 oz | Packaging | Bulk |
| Cable Type | RG-55, RG-142, RG-223, RG-400 | Body Finish | Gold |
| Cable Group | RG-55, 142, 223 | Orientation | Straight |
| Termination | Crimp | Body Material | Brass |
| Housing Color | Gold | Mounting Type | Cable Mount |
| Angle of Throw | Straight | Connector Type | Plug, Male Pin |
| Contact Finish | Gold | Fastening Type | Threaded |
| Housing Finish | Gold | Plating - Body | Gold |
| Connector Style | SMA | Connector Usage | Threaded |
| Contact Material | Brass | Housing Material | Brass |
| Length - Overall | 18.2 | Primary Material | SMA |
| Termination Style | Cable - Crimp | Shield Termination | Crimp |
| Contact Termination | Solder | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Insulation Material | Polytetrafluoroethylene | Center Contact Plating | Gold |
| Center Contact Material | Brass | Supplier Device Package | Straight |
Product Info
| Type | SMA | Gender | PL |
| Polarity | Standard | Connection Type | Flexible Cable |
| RF Family/Standard | 132195 | Application Specifics | Commercial |
Environmental
| Mating Cycles | 500 | Operating Temperature | -65°C ~ 165°C |
Documents & Media
Similar Parts

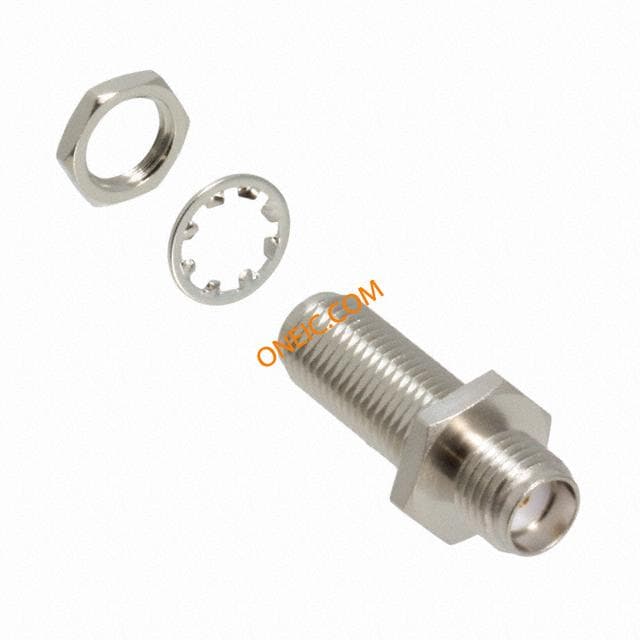

901-9986-RFX
amphenol
SMA BLKHD ADAPTER, J-J SMA BLKHD JACK TO JACK ADAPTER CONN COAXIAL RF Adapters - In Series SMA STRAIGHT BLKHD ADPT BULKHEAD ADAPTER, SMA JACK-SMA JACK

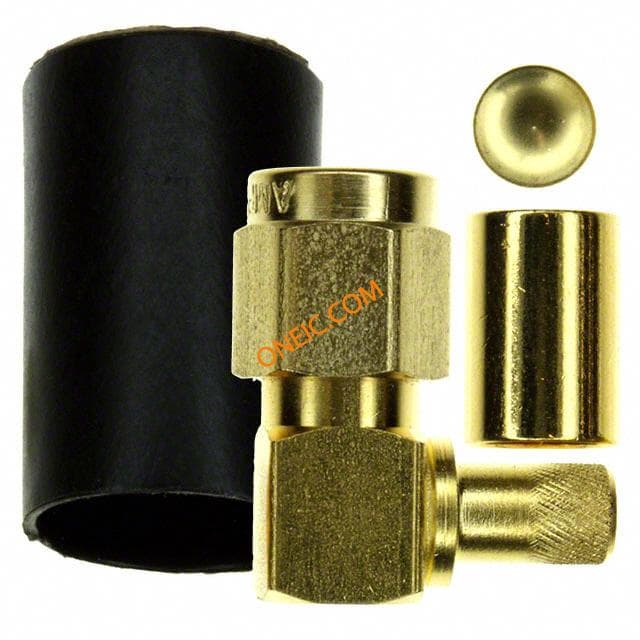

901-9531-1
