132169RP
| Manufacturer | |
| Description | Conn SMA Adapter RCP/RCP ST Gold CONN SMA ADAPTER JACK-R/P JACK RF Adapters - In Series SMA JACK TO JACK REVERSE POLARITY ADAPTER, SMA JACK, SMA RP JACK connector, rf coaxial, sma in-series adapter, jack to rev. polarity jack, 50 ohm |
| Category |
Business
| Other Names | ACX1243 | Product Category | RF Adapters - In Series |
| Standard Package | Bag | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366910 |
Electrical
| Impedance | 50 Ohm | Conversion Type | Between Series |
| Frequency - Max | 18GHz | ||
Mechanical
| Weight | 0.059966 oz | Packaging | Bulk |
| Body Finish | Gold | Body Material | Brass |
| Mounting Type | Straight | Shell Plating | Gold |
| Angle of Throw | Straight | Connector Type | :Inter Series Coaxial |
| Contact Finish | Gold | Housing Finish | Gold |
| Contact Material | Beryllium Copper | Housing Material | Brass |
| Primary Material | Adapter | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| 1st Connector Gender | Jack (Female) | 2nd Connector Gender | Jack (Female) |
| Center Contact Plating | Gold | Center Contact Material | Beryllium Copper |
| Supplier Device Package | :Straight | 1st Connector Mounting Type | Normal |
| 1st Connector Mounting Feature | :Socket | 2nd Connector Mounting Feature | Reverse |
Product Info
| Type | SMA Adapter | Style | Straight |
| Gender | RCP/RCP | Adapter Type | Jack to Jack |
| Center Gender | Female to Male | Adapter Series | RP-SMA to SMA |
| RF Family/Standard | 132169 | Convert To (Adapter End) | RP-SMA Jack, Male Pin |
| Convert From (Adapter End) | SMA Jack, Female Socket | ||
Documents & Media
Similar Parts

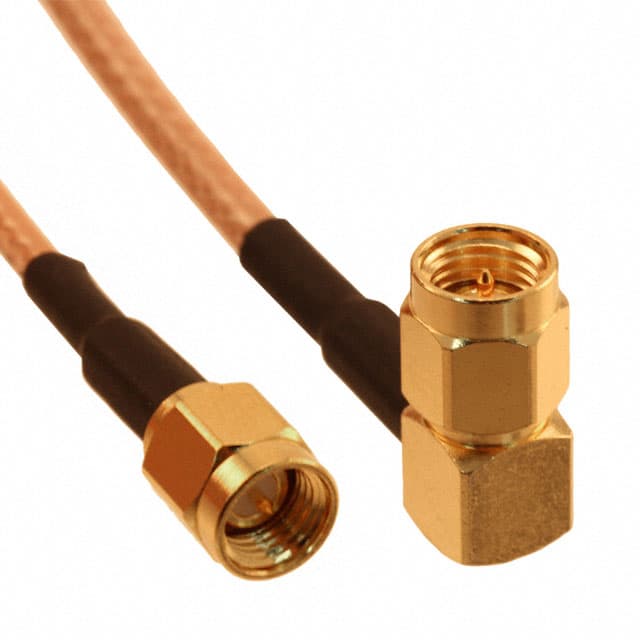

135103-03-12.00
amphenol connex
Cable Assembly RG316 0.304m SMA to SMA PL-PL Poly Bag CABLE SMA R/A-STR PLUG RG316 12" RF Cable Assemblies SMA R/A Plug to St Plug RG-316/U DB 12 COAXIAL CABLE ASSY, RG-316, 12IN, BLACK SMA CABLE ASSEMBLY, R/A PLUG TO STRAIGHT PLUG, RG-316/U DB, 12 INCHES
135101-02-36.00
amphenol connex
Cable Assembly RG174 0.914m SMA to SMA PL-PL Poly Bag CBL SMA STR PLUG-PLUG RG174 36" RF Cable Assemblies SMA St Plug to St Plug RG-174/U 36 COAXIAL CABLE ASSY, RG-174, 36IN, BLACK SMA CABLE ASSEMBLY, STRAIGHT PLUG TO STRAIGHT PLUG, RG-174/U, 36 INCHES

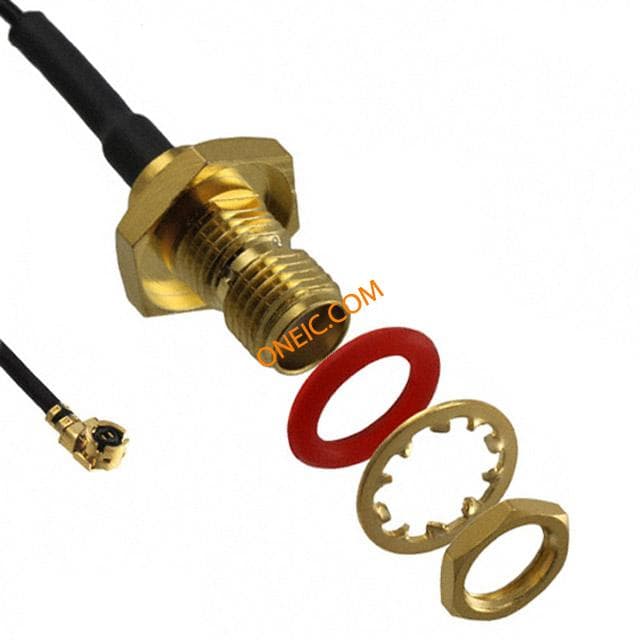

336309-12-0050
