| Manufacturer | |
| Description | RF Connectors TNC R/A BULKHEAD JACK 316/U Conn TNC F 0Hz to 11GHz 50Ohm Crimp RA Panel Mount Gold CONN TNC JACK R/A 50 OHM SOLDER RF Connectors / Coaxial Connectors TNC R/A BULKHEAD JACK 316/U |
| Category |
Business
| Product | Connectors | Other Names | ACX1957 |
| Product Category | RF Connectors / Coaxial Connectors | Standard Package | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Frequency | 0 to 11G | Impedance | 50 Ohm |
| Voltage Rating | 500V | Coupling Factor | Threaded |
| Frequency - Max | 11GHz | ||
Mechanical
| Height | 26.25 | Weight | 1 oz |
| Diameter | 18.5 | Packaging | Bulk |
| Body Finish | Nickel | Cable Group | RG-174, 316, LMR-100 |
| Orientation | Right Angle | Termination | Crimp |
| Body Material | Brass | Housing Color | Silver |
| Mounting Type | Panel Mount | Connector Type | Jack, Female Socket |
| Contact Finish | Gold | Fastening Type | Threaded |
| Plating - Body | Nickel | Connector Style | TNC |
| Contact Material | Phosphor Bronze | Length - Overall | 31 |
| Termination Style | Cable - Crimp | Shield Termination | Crimp |
| Contact Termination | Solder | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Insulation Material | Polytetrafluoroethylene | Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze | ||
Product Info
| Type | TNC | Gender | F |
| Polarity | Standard | Connection Type | Coaxial Cable |
| RF Family/Standard | TNC | ||
Environmental
| Mating Cycles | 500 | Ingress Protection | Weatherproof |
| Operating Temperature | - 65 C to + 165 C | ||
Documents & Media
Similar Parts
47-10150
Amphenol Connex
Crimpers CRIMP TOOL W/DIE .178/.128/.068 TOOL CRIMP W/DIES .178/.128/.068 tool;ratcheted hand crimp tool w/die set;cavities: .178;.128;.068 (see notes) Crimp Tool With Die CRIMP TOOL W/DIE SET, RATCHET,COAXIAL CABLE tool, ratcheted hand crimp tool w/die set, cavities: .178, .128, .068 (see notes)
47-20004
amphenol connex
Crimp Die Set Punches & Dies CRIMP DIE .178/ .128/.068 TOOL DIE SET .178/.128/.068 DIE FOR RG174, MINI 59 BNC/TNC
202101
Amphenol Connex

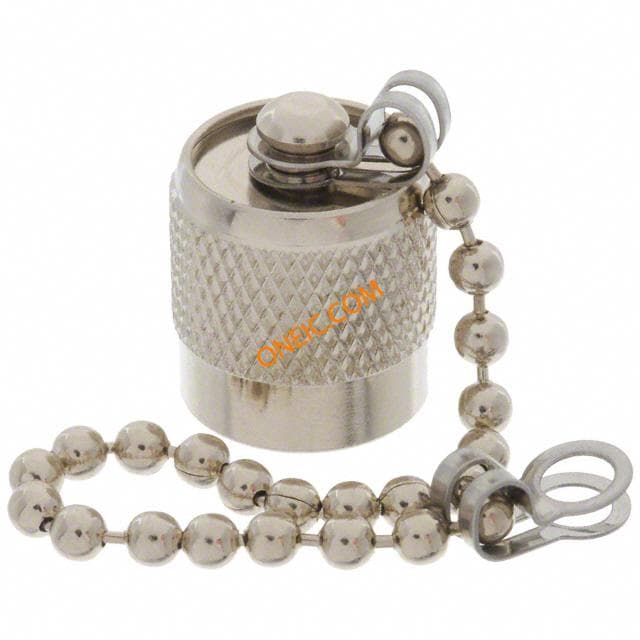

RF Connectors TNC MALE CAP AND CHAIN Connector Accessories TNC Male Cap with Chain Brass Nickel Finish CONN TNC PLUG CAP WITH CHAIN connector accessory;rf coaxial;tnc male cap w/100mm chain;for jacks and recept RF Connector Accessories TNC MALE CAP AND CHAIN DUST CAP, BRASS Coaxial/RF; Cap-w/Chain; TNC; Protective; Male; Brass; forJacksandRecep; Straight CONN CAP (COVER) FOR TNC JACKS 202101 TNC Male Cap with Chain
