122386
| Manufacturer | |
| Description | Conn TNC PL 0Hz to 11GHz 50Ohm Solder ST Cable Mount Gold CONN TNC PLUG STR 50 OHM SOLDER connector;rf coaxial;tnc straight solder plug;for .141 semi-rigid cable RF Connectors / Coaxial Connectors TNC STRAIGHT SOLDER PLUG .141 SEMI RIGID connector, rf coaxial, tnc straight solder plug, for .141 semi-rigid cable |
| Category |
Business
| Product | Connectors | Other Names | ACX1087 |
| Part # Aliases | 319-0075 | Product Category | RF Connectors / Coaxial Connectors |
| Standard Package | Bag | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Frequency | 0 to 11 GHz | Impedance | 50 Ohm |
| Voltage Rating | 500V | Coupling Factor | Threaded |
| Frequency - Max | 11GHz | ||
Mechanical
| Weight | 0.419407 oz | Diameter | 14.5 |
| Packaging | Bulk | Cable Type | RG-402/U, 0.141 Semi-Rigid |
| Body Finish | Nickel | Cable Group | RG-402 (.141" Semi Rigid) |
| Orientation | Straight | Termination | Solder |
| Body Material | Brass | Housing Color | Silver |
| Mounting Type | Cable Mount | Angle of Throw | Straight |
| Connector Type | Plug, Male Pin | Contact Finish | Gold |
| Fastening Type | Threaded | Housing Finish | Nickel |
| Plating - Body | Gold/Nickel | Connector Style | TNC |
| Connector Usage | Threaded | Contact Material | Brass |
| Housing Material | Brass | Length - Overall | 23 |
| Primary Material | TNC | Termination Style | Cable - Solder |
| Shield Termination | Solder | Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Insulation Material | Polytetrafluoroethylene |
| Center Contact Plating | Gold | Center Contact Material | Brass |
| Supplier Device Package | Straight | ||
Product Info
| Type | TNC | Gender | PL |
| Features | Captivated Contact | Polarity | Standard |
| Manufacturer | TNC Series | Connection Type | Semi-Rigid Cable |
| RF Family/Standard | 122386 | Application Specifics | Commercial |
Environmental
| Mating Cycles | 500 | Operating Temperature | - 65 C to + 165 C |
Documents & Media
Similar Parts
1673A TIN100
Belden Wire & Cable
Coaxial Cables 19AWG 1C SHIELD 100ft SPOOL TIN COAXIAL CABLE; 19AWG SOLID; PTFE INSULATED; MICROWAVE; 50 OHMS TIN; 30m CABLE, COAXIAL, UNJKTED, RG402/U, 19AWG, 100FT, TIN COAXIAL CABLE, 19AWG SOLID, TEFLON INSULATED, MICROWAVE, 50 OHMS TIN
1673J 010100
Belden Wire & Cable
Coaxial Cables 19AWG 1C SHIELD 100ft SPOOL BLACK COAXIAL CABLE; 19AWG; SOLID; 50 OHM; CONFORMABLE; RG-402/U; PVC JACKET BLACK; 30m COAXIAL CABLE, 19AWG, SOLID, 50 OHM, CONFORMABLE, RG-402/U, PVC JACKET BLACK

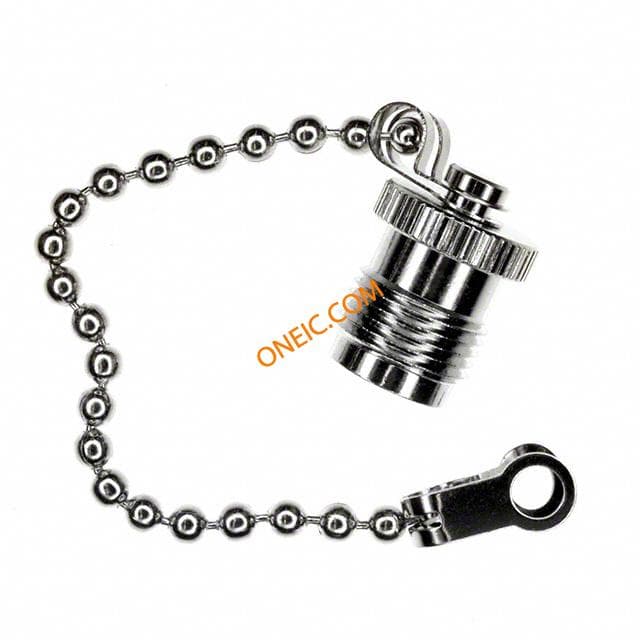

122486
