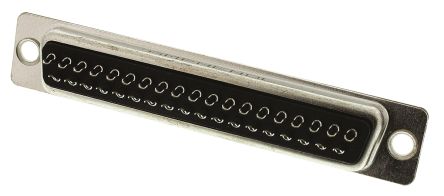

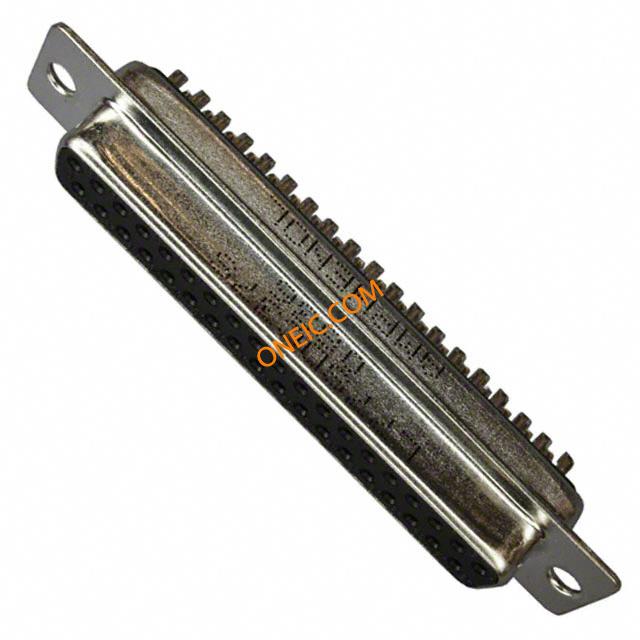

L77SDC37S
| Manufacturer | |
| Description | D-Sub Standard Connectors Female 37P solder cup tinned shell CONN D-SUB RCPT 37POS GOLD FLASH Solder cup D-Sub 37way receptacle D-Subminiature Connectors Female 37P solder cup tinned shell D-Sub female 37P, L77SDC37S, Amphenol Amphenol 面板安装 DB37 37 路 焊接 D-sub 连接器 插座 , 5A |
| Category |
Business
| Part # Aliases | 01M2390 | Product Category | D-Sub Standard Connectors |
| Standard Package | 40 | Factory Pack Quantity | 40 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 250 V | Number of Poles | 37 |
| Current Rating (Max) | 3 A | ||
Mechanical
| Color | Black | Depth | 15.65mm |
| Pitch | 2.77 mm | Width | 12.55mm |
| Length | 69.4mm | Packaging | Bulk |
| Shell Size | C | Orientation | 直 |
| Termination | Solder Cup | Contact Type | Signal |
| Mounting Type | Free Hanging (In-Line) | Shell Plating | Tin over Steel |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) | Mounting Style | Panel |
| Number of Rows | 2 | Shell Material | Steel |
| Connector Style | D-Sub | Contact Material | Brass |
| Housing Material | Thermoplastic, Glass Filled | Size / Dimension | 69.4 x 12.55 x 15.65mm |
| Termination Style | Solder | Number of Contacts | 37 |
| Number of Positions | 37 | 1st Connector Gender | Female |
| Shell Material, Finish | Steel, Tin Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 4 (DC, C) | ||
Product Info
| Gender | Female | Series | D-DF |
| Description | D-Sub female 37p | ||
Environmental
| Operating Temperature | - 55 C to + 125 C | ||
