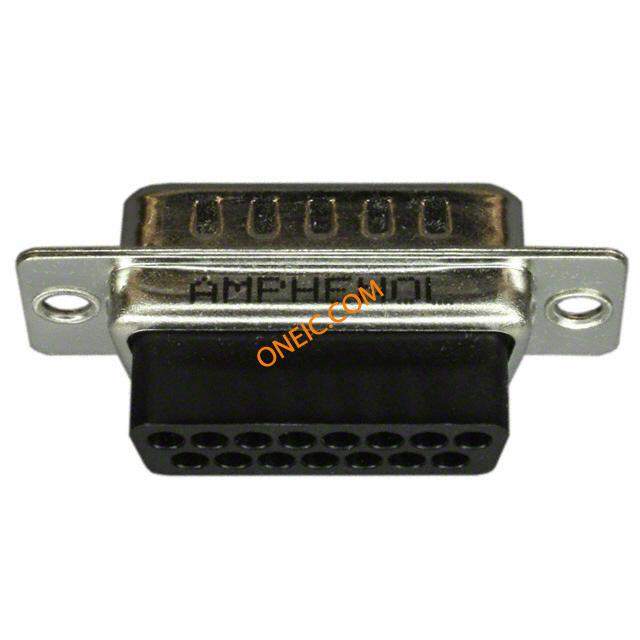

L777-RR-A-15-P
| Manufacturer | |
| Description | CONN D-SUB HOUSING PLUG 15POS |
| Category |
Business
| Other Names | L777RRA15P | Standard Package | 50 |
Mechanical
| Color | Black | Packaging | Bulk |
| Contact Form | Signal | Contact Type | Signal |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Plug for Male Contacts |
| Flange Feature | Housing/Shell (Unthreaded) | Number of Rows | 2 |
| Connector Style | D-Sub | Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Number of Positions | 15 | Shell Finish Thickness | 100µin (2.54µm) |
| Shell Material, Finish | Steel, Tin Plated | Shell Size, Connector Layout | 2 (DA, A) |
Product Info
| Note | Contacts Not Provided | Series | RR |
| Features | Grounding Indents | Main Purpose | Grounding Indents |
| Output Configuration | Free Hanging (In-Line) | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
