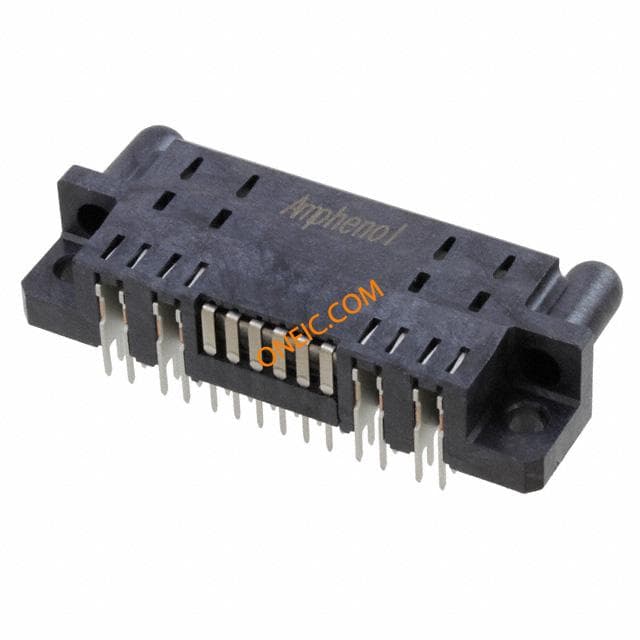

G20M206000HR
| Manufacturer | |
| Description | PWR CONN HDR 28POS R/A T/H Power to the Board Energy Razor, Male R/A Solder Tail G20M206000HR CONNECTOR, RECTANGULAR POWER, PLUG, 28POS, PCB Conn; Rect; Power; Plug; 28Cnts; SolderTail; EnergyRazorSeries; RtAng; 4Power, 24Signal |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 432 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366930 |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Current Rating (Max) | 3 A Signal, 30 A Power | ||
Mechanical
| Color | Black | Pitch | 0.100" (2.54mm) |
| Weight | 0 | Packaging | Tray |
| Termination | Solder | Mounting Type | Through Hole, Right Angle |
| Connector Type | Header, Male Pins and Blades | Contact Finish | Gold |
| Mounting Style | Screw | Number of Rows | 4 |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Termination Style | Solder Tail | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 2 Power, 24 Signal, 2 Power | Contact Termination | :Through Hole Right Angle |
| Number of Positions | 28 | Contact Layout, Typical | 24 Signal, 4 Power |
| 1st Connector Mounting Type | :PCB | ||
Product Info
| Gender | :Plug | Series | G20 |
| Features | Mating Guide | Product Type | Connectors |
| Number of Positions Loaded | All | ||
