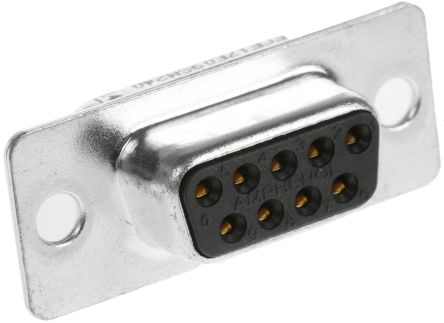

FCE17-E09SM-240
| Manufacturer | |
| Description | D-Sub Standard Connectors D-SUB S/CUP 820PF 9w Filter D solder socket, 5A 820pF SOCKET, DSUB, 820PF, STRT, 9WAY connector, filtered d-sub, str, solder cupterm, 9 socket contact receptacle, 820pF Amphenol FCE17 系列 面板安装 DB9 9 路 滤波焊接 D-Sub 连接器 插座 , 5A |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 720-1050 99K7419 | Product Category | D-Sub Standard Connectors |
| Factory Pack Quantity | 60 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366990 |
| Material Flammability Rating | UL 94-V0 | ||
Electrical
| Capacitance | :820pF | Current Rating (Max) | 5 A |
Mechanical
| Depth | 16.73mm | Pitch | 2.74 mm |
| Width | 12.55mm | Length | 30.81mm |
| Weight | 0.006 | Shell Size | E |
| Wire Gauge | 20 | Termination | Solder |
| Mounting Type | Straight | Shell Plating | Tin |
| Angle of Throw | Straight | Contact Finish | Gold |
| Housing Finish | Tin | Mounting Style | Panel |
| Number of Rows | 2 | Shell Material | Steel |
| Material - Body | :Metal | Contact Material | Phosphor Bronze |
| Housing Material | Steel | Primary Material | D-Subminiature |
| Size / Dimension | 30.81 x 12.55 x 16.73mm | Termination Style | Solder |
| Number of Contacts | 9 | Contact Termination | :Solder |
| Dielectric Material | Thermoplastic | ||
Product Info
| Type | Cable Socket | Gender | Female |
| Series | :- | Features | Filtered |
| Manufacturer | FCE17 | ||
Environmental
| Operating Temperature | - 40 C to + 85 C | ||
