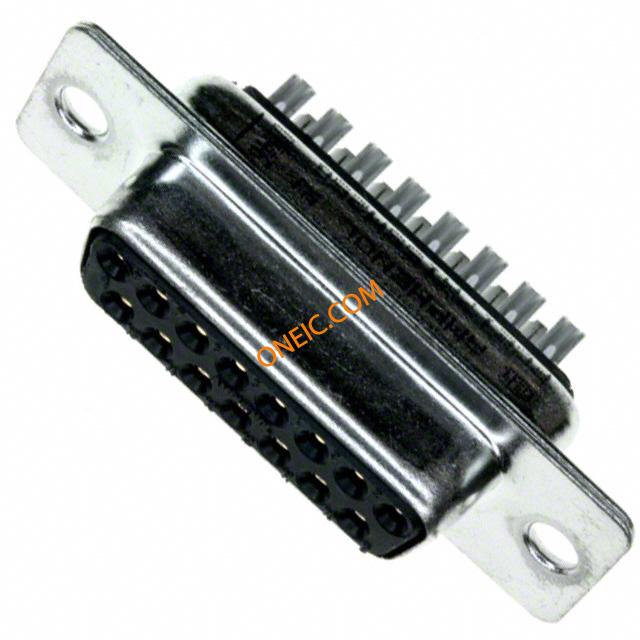

FCE17-A15SM-250
| Manufacturer | |
| Description | FILTER D-SUB 15POS SCKT SLD CUP 15w Filter D, Solder cup,skt,1000pF SOCKET, DSUB, 1000PF, STRT, 15WAY 15WFILTDSLDSKT1000PF Female D-Sub connector 15P, FCE17-A15SM-250, Amphenol Amphenol FCE17 系列 面板安装 DB15 15 路 滤波焊接 D-Sub 连接器 插座 , 5A |
| Category |
Business
| Other Names | FCE17A15SM250 | Standard Package | 60 |
Compliance
| RoHS | Compliant | Tariff No | 85366990 |
Electrical
| Capacitance | :1000pF | Current Rating (Max) | 5A |
Mechanical
| Color | Black | Depth | 16.73mm |
| Pitch | 2.74mm | Width | 12.55mm |
| Length | 39.14mm | Weight | 0.008 |
| Packaging | Tray | Shell Size | :DA |
| Termination | Solder Cup | Contact Type | Signal |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Flange Feature | Housing/Shell (Unthreaded) |
| Number of Rows | 2 | Connector Style | D-Sub |
| Material - Body | :Metal | Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic, Glass Filled | Size / Dimension | 39.14 x 12.55 x 16.73mm |
| Number of Contacts | 15 | Contact Termination | :Solder |
| Number of Positions | 15 | Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | 15µin (0.38µm) | Shell Size, Connector Layout | 2 (DA, A) |
Product Info
| Gender | Female | Series | :- |
| Features | Filter | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
