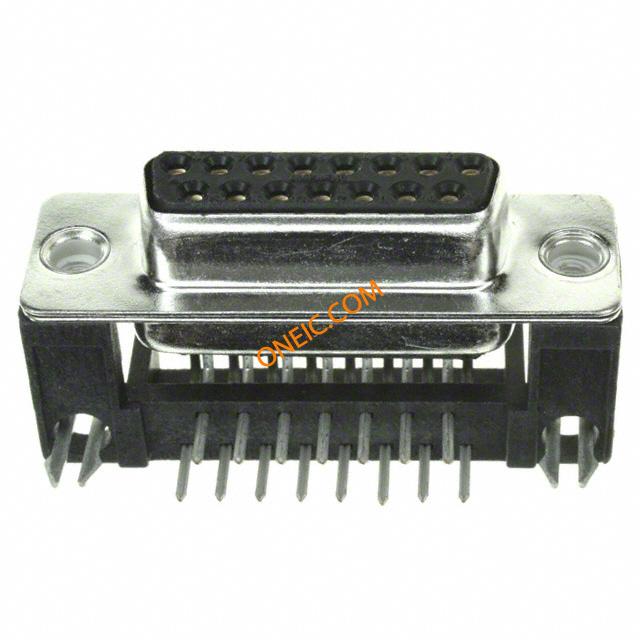

FCE17-A15SB-440
| Manufacturer | |
| Description | D-Sub Standard Connectors .405 R/A 4-40 THRD 15P SOCKET 820 PF FILTER D-SUB 15PS SCKT .405" R/A 15w Fiiter D r/a,.405 f/print,skt,820pF SOCKET, DSUB 4-40, 820PF, RA, 15WAY Amphenol FCE17 系列 2.74mm 节距 15 路 直角 面板安装 滤波印刷电路板 D-Sub 连接器 插座 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | FCE17A15SB440 | Product Category | D-Sub Standard Connectors |
| Standard Package | 60 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366990 |
Electrical
| Capacitance | :820pF | Current Rating (Max) | 5 A |
Mechanical
| Color | Black | Depth | 20.85mm |
| Pitch | 2.74 mm | Width | 12.55mm |
| Length | 39.14mm | Weight | 0.01 |
| Packaging | Tray | Shell Size | A |
| Termination | Solder | Contact Type | Signal |
| Mounting Type | Right | Shell Plating | Tin |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Housing/Shell (4-40) | Number of Rows | 2 |
| Shell Material | Steel | Connector Style | D-Sub |
| Contact Material | Phosphor Bronze | Housing Material | Thermoplastic, Glass Filled |
| Size / Dimension | 39.14 x 12.55 x 20.85mm | Number of Contacts | 15 |
| Contact Termination | :Solder | Number of Positions | 15 |
| Shell Material, Finish | Steel, Tin Plated | Contact Finish Thickness | 15µin (0.38µm) |
| Shell Size, Connector Layout | 2 (DA, A) | ||
Product Info
| Gender | Female | Series | :FCE17 |
| Features | Board Lock, Filter | ||
Environmental
| Operating Temperature | - 40 C to + 85 C | ||
Documents & Media
PDF Document
PDF Document
