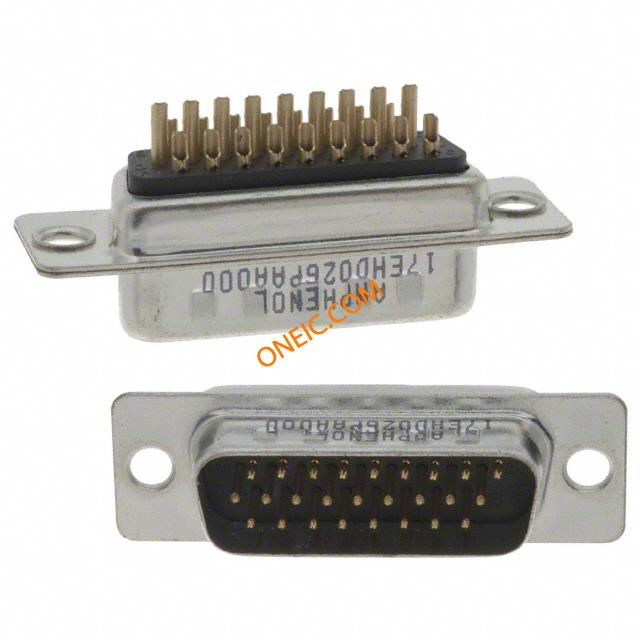

17EHD-026-P-AA-0-00

Manufacturer	Amphenol Corporation
Description	CONN DSUB PLUG 26POS SLD CUP
Category	Connector SolutionsD-Sub Connectors

对参数有疑问？问 AI 助手

Business

Other Names

17EHD026PAA000

Standard Package

Electrical

Current Rating (Max)

Mechanical

Color	Black	Packaging	Tray
Termination	Solder Cup	Contact Type	Signal
Mounting Type	Free Hanging (In-Line)	Connector Type	Plug, Male Pins
Contact Finish	Gold	Flange Feature	Housing/Shell (Unthreaded)
Number of Rows	3	Connector Style	D-Sub, High Density
Housing Material	Polyamide (PA), Nylon, Glass Filled	Number of Positions	26
Shell Material, Finish	Steel, Tin Plated	Contact Finish Thickness	3µin (0.08µm)
Shell Size, Connector Layout	2 (DA, A) High Density

Product Info

Features

Grounding Indents

Environmental

Operating Temperature

-55°C ~ 105°C
