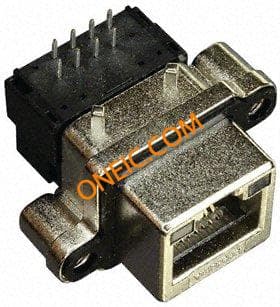

MRJ-5380-01
| Manufacturer | |
| Description | Conn Modular Jack F 8 POS 2.54mm Solder RA Thru-Hole 8 Terminal 1 Port CONN MOD JACK R/A 8P8C Modular Connectors / Ethernet Connectors RJ45 PCB RECPT RA IP67 NO LED NICKEL connector, rj 45 receptacle, pcb mount, right angle, no leds, nickel plated, ip67 Socket; RJ45; UL94V-0; IP67; THT; for panel mounting; angled 90° |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | MRJ538001 | Part # Aliases | 720-3120 74K3107 |
| Product Category | Modular Connectors / Ethernet Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 30 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Material Flammability Rating | UL94V-0 |
Electrical
| LED | Does Not Contain LED | Voltage Rating | 100 V |
| Contact Resistance | 30 mohm | Current Rating (Max) | 1.5 A |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Weight | 0.02 kg | LED Color | Does Not Contain LED |
| Packaging | Bulk | Shielding | Unshielded |
| Jaw Opening | Down | Orientation | 90° Angle (Right) |
| Termination | Solder | Mounting Type | Through Hole |
| Tab Direction | Down | Angle of Throw | Right |
| Connector Type | Jack | Contact Finish | Gold |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Contact Material | Phosphor Bronze | Housing Material | Polycarbonate (PC) |
| Package Quantity | 10 | Primary Material | Modular |
| Connector - Cable | socket | Number of Contacts | 8 POS |
| Mounting Hole Spacing | 24mm | Mounting Hole Diameter | 3.2mm |
| Thread/Screw/Hole Size | UNC4-40 | Contact Finish Thickness | 50µin (1.27µm) |
Product Info
| Spg | 10 | Type | Modular Jack |
| Gender | F | Series | MRJ |
| DELETED | Compliant | Features | Board Guide |
| Performance | Cat 5e | Manufacturer | MRJ |
| Specifications | RJ45 | Number of Ports | 1 |
| Number of Units | 1 | Output Configuration | Panel Mount, Flange; Through Hole |
| Performance Category | Cat 5e | Number of Positions Loaded | 8 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) | ||
Environmental
| Seal Rating | IP67 | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Temperature | -40°C ~ 105°C | ||
Documents & Media
PDF Document
