点击放大查看

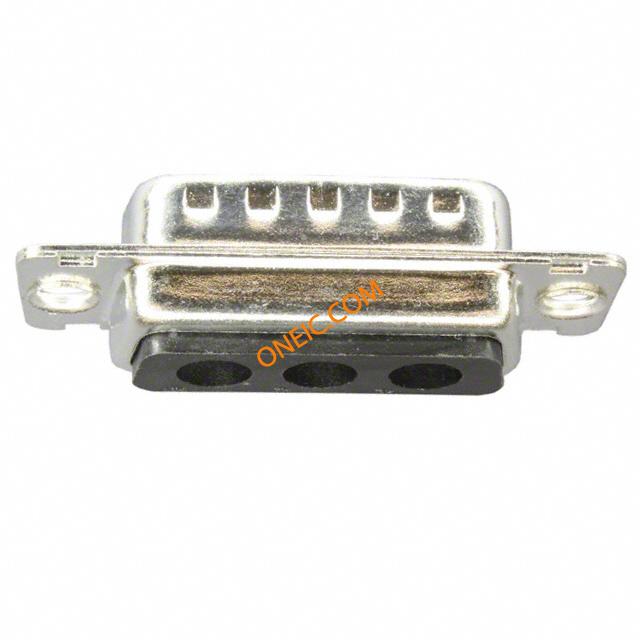

L717TWA3W3P
| Manufacturer | |
| Description | Conn D-Subminiature PIN 3Power POS Solder Cup ST Panel Mount 3 Terminal 1 Port D-Sub Mixed Contact Connectors MIXED CONTACTS CONN D-SUB PLUG 3W3POS HOUSING |
| Category |
Business
| Part # Aliases | 88K3021 | Product Category | D-Sub Mixed Contact Connectors |
| Standard Package | Bag | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 300 V | Current Rating (Max) | 7.5 A |
Mechanical
| Color | Black | Packaging | Bulk |
| Insulation | Insulated | Shell Size | A |
| Termination | Solder Cup | Contact Form | Power |
| Contact Type | Power | Mounting Type | Panel Mount |
| Shell Plating | Tin | Connector Type | Plug for Male Contacts |
| Contact Finish | Gold | Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Style | Panel | Number of Rows | 2 |
| Shell Material | Steel | Connector Style | D-Sub, Combo |
| Contact Material | Brass | Termination Style | Solder |
| Number of Contacts | 3Power | Dielectric Material | Thermoplastic, Glass Filled |
| Insulation Material | Thermoplastic | Number of Positions | 3 (Power) |
| Shell Finish Thickness | 100µin (2.54µm) | Shell Material, Finish | Steel, Tin Plated |
| Contact Layout, Typical | 3W3 | Shell Size, Connector Layout | 2 (DA, A) - 3W3 |
Product Info
| Note | Contacts Not Provided | Type | D-Subminiature |
| Gender | PIN | Series | TW |
| Features | Grounding Indents | Main Purpose | Grounding Indents |
| Output Configuration | Free Hanging (In-Line) | ||
Environmental
| Mating Cycles | 200 | Operating Temperature | -55°C ~ 155°C |
Documents & Media
Similar Parts
17E-1657-15
amphenol canada, corp.
Connector Accessories Metal Backshell Two Piece Die Cast Zinc D-Sub 15 POS D-Sub Backshells 15P METAL 2 PIECE BACKSHELL CONN BACKSHLL DB15 DIE CAST ZINC connector accessory;d-sub;2-piece die-cast metal hood w/grommets;std 15/hd 26 Hood; D-Sub; 15STDPos, 26HDPos; STRExit; 17ESeries; Die-CastMetal; 0.400in.CblDia
L17DM537457
amphenol canada, corp.
Contact PIN Solder ST D-Sub Contacts DSUB COMM ACC CONN S-SUB PIN 14AWG SOLDER GOLD Solder cup power contact male 30A L17DM537457 Amphenol 公 焊接 功率 D-Sub 连接器电源触点, 镀金 触点
L17DM537451
Amphenol Commercial Products
D-Sub Contacts 30-40A Solder Cup Straight Pin Hybrid CONN D-SUB PIN 6AWG SOLDER GOLD Solder cup power contact male 40A L17DM537451 Amphenol 公 焊接 功率 D-Sub 连接器电源触点, 镀金 触点
L17DM53745207
Amphenol Commercial Products
D-Sub Contacts 20-30A Crimp Straight Pin Hybrid CONTACT CRIMP D-SUB PLUG 20-30A
L17DM537401
amphenol canada, corp.
Contact PIN Crimp ST Cable Mount D-Sub Contacts COAX PLG CRIMP CNT D-SUB PIN STR SHIELDED CRIMP D SUB CONTACT, PIN, CRIMP
L17DM537458
amphenol canada, corp.
Contact PIN Solder ST D-Sub Contacts 10-20A Solder Cup Straight Pin Hybrid CONN D-SUB PIN 16AWG SOLDER GOLD Solder cup power contact male 20A L17DM537458 SLDCUPPWRCONTMALE20A Amphenol 公 焊接 功率 D-Sub 连接器电源触点, 镀金 触点

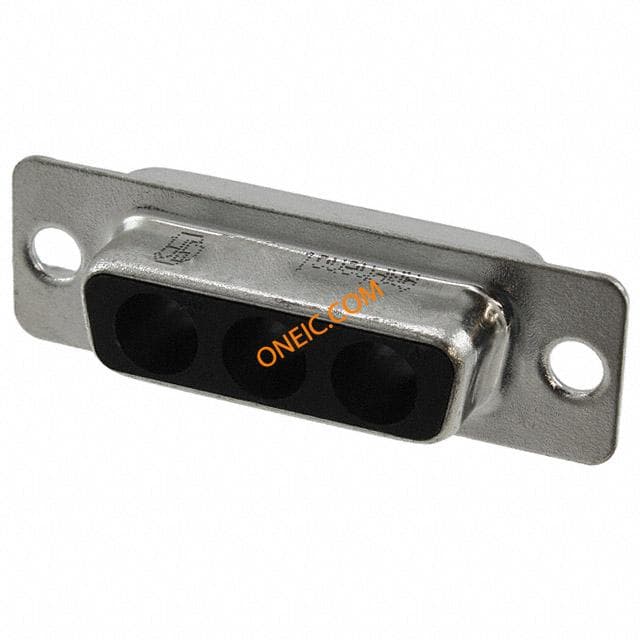

L77TW-A-3W3-S
