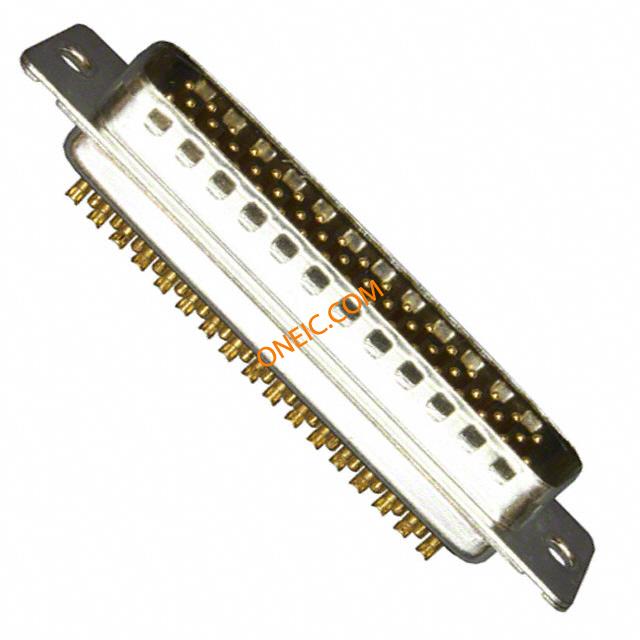

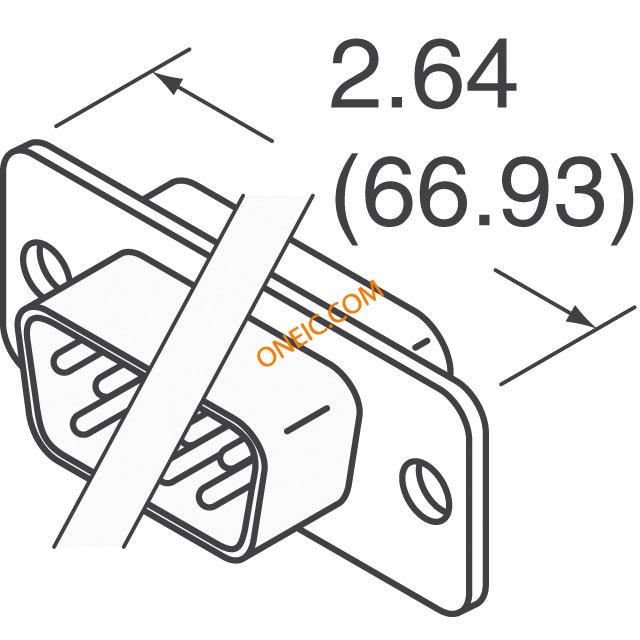

L717DD50P
| Manufacturer | |
| Description | Conn D-Subminiature PIN 50 POS Solder Cup ST Panel Mount 50 Terminal 1 Port D-Sub High Density Connectors 50P PLUG SOLDER CUP FIXED MACHINED CONN DSUB PLUG 50POS SLD CUP POS |
| Category |
Business
| Part # Aliases | 01M0777 | Product Category | D-Sub High Density Connectors |
| Standard Package | Bag | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 300V | Current Rating (Max) | 7.5 A |
Mechanical
| Color | Black | Packaging | Bulk |
| Termination | Solder Cup | Contact Type | Signal |
| Mounting Type | Panel Mount | Shell Plating | Yellow Chromated |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) | Mounting Style | Wire |
| Number of Rows | 3 | Shell Material | Steel |
| Connector Style | D-Sub | Contact Material | Brass |
| Housing Material | Thermoplastic, Glass Filled | Termination Style | Solder |
| Number of Contacts | 50 | Number of Positions | 50 |
| Shell Material, Finish | Steel, Tin Plated | Contact Finish Thickness | 3.9µin (0.10µm) |
| Shell Size, Connector Layout | 5 (DD, D) | ||
Product Info
| Type | D-Subminiature | Gender | PIN |
| Series | D-DF | Features | Grounding Indents |
Environmental
| Operating Temperature | -55°C ~ 85°C | ||
Documents & Media
Similar Parts
17E-1728-2
Amphenol Commercial Products
D-Sub Backshells 50P METALLIZED 2 PIECE BACKSHELL CONN BACKSHELL DB50 METAL PLATED connector accessory;d-sub;2-piece metalized plastic hood;for std 50/hd 78 cont Hood; D-Sub; 50STDPos, 78HDPos; STRExit; 17E Series; MetallizedPlastic; 0.726In.CblDia
17E-1728-1
Amphenol Commercial Products
D-Sub Backshells 50P PLASTIC 2 PIECE BACKSHELL CONN BACKSHELL DB50 BLK PLASTIC connector accessory;d-sub;2-piece black plastic str hood;for std 50/hd 78 cont Hood; D-Sub; 50STDPos, 78HDPos; STRExit; 17E Series; Plastic; 0.726In.CblDia
L77DD50S
amphenol canada, corp.
Conn D-Subminiature SKT 50 POS 2.76mm Solder Cup ST Panel Mount 50 Terminal 1 Port CONN DSUB RCPT 50POS SLD CUP D SUB CONNECTOR, STANDARD, 50POS, RCPT

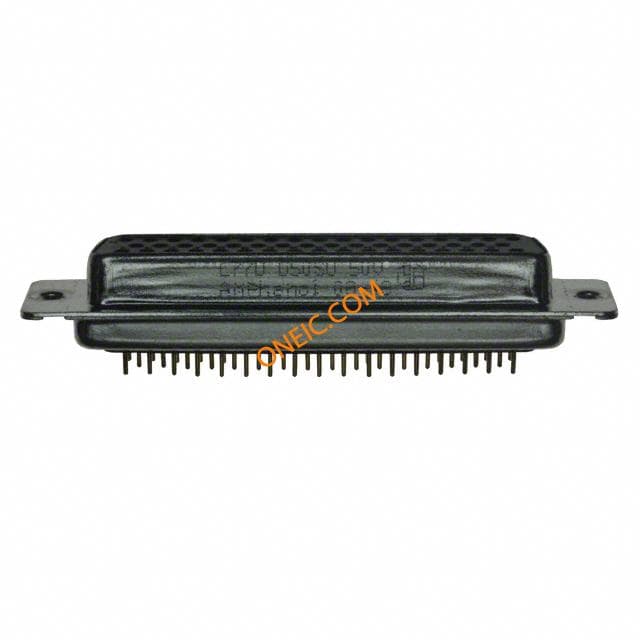

L77DD50SU
Amphenol Commercial Products
CONN D-SUB RCPT 50POS STR PCB D SUB CONNECTOR, STANDARD, 50POS, RCPT

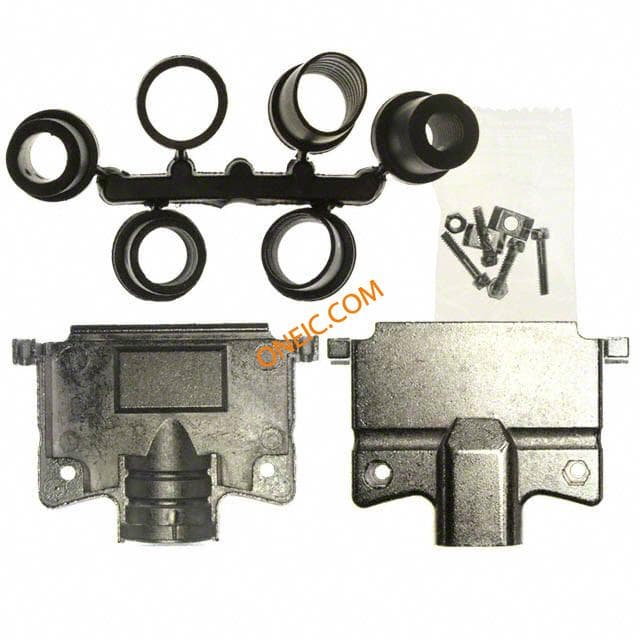

17E165750
