点击放大查看

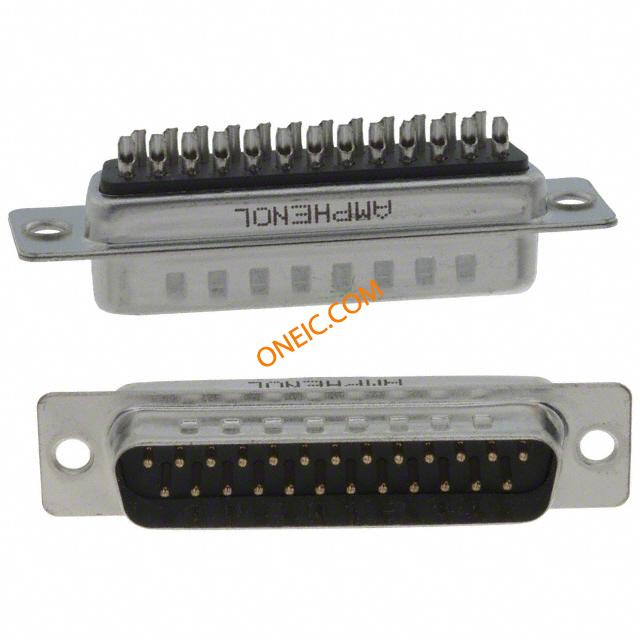

G17S2510110EU
| Manufacturer | |
| Description | Conn D-Subminiature PL 25 POS 2.77mm Solder Pot ST Panel Mount 25 Terminal 1 Port D-Sub Standard Connectors 25P PLUG SOLDER CUP FIXED PRECISION CONN D-SUB PLUG 25POS GOLD FLASH |
| Category |
Business
| Part # Aliases | 720-3021 96K5472 | Product Category | D-Sub Standard Connectors |
| Standard Package | Trays | Factory Pack Quantity | 48 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 250V | Current Rating (Max) | 5 A |
Mechanical
| Color | Black | Pitch | 2.77 mm |
| Packaging | Bulk | Termination | Solder Pot |
| Contact Type | Signal | Mounting Type | Panel Mount |
| Shell Plating | Tin | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Style | Panel | Number of Rows | 2 |
| Shell Material | Steel | Connector Style | D-Sub |
| Contact Material | Brass | Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Termination Style | Solder | Number of Contacts | 25 |
| Number of Positions | 25 | Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | Flash | Shell Size, Connector Layout | 3 (DB, B) |
Product Info
| Type | D-Subminiature | Gender | PL |
| Series | D-DF | ||
Documents & Media
Similar Parts
17E-1726-1
Amphenol Commercial Products
D-Sub Backshells 25P PLASTIC 2 PIECE BACKSHELL CONN BACKSHELL DB25 BLK PLASTIC connector accessory;d-sub;2-piece black plastic str hood;for std 25/hd 44 cont Hood; D-Sub; 25STDPos, 44HDPos; STRExit; 17E Series; Plastic; 0.522In.CblDia
17E-1726-2
Amphenol Commercial Products
D-Sub Backshells 25P METALLIZED 2 PIECE BACKSHELL CONN BACKSHELL DB25 METAL PLATED connector accessory;d-sub;2-piece metalized plastic hood;for std 25;hd 44 cont Hood; D-Sub; 25STDPos, 44HDPos; STRExit; 17E Series; MetallizedPlastic; 0.522In.CblDia
17E-1657-25
Amphenol Commercial Products
D-Sub Backshells 25P METAL 2 PIECE BACKSHELL CONN BACKSHLL DB25 DIE CAST ZINC connector accessory;d-sub;2-piece die-cast metal hood w/grommets;std 25;hd44 con Connector Accessories Metal Backshell Two Piece Die Cast Zinc D-Sub 25 POS Hood; D-Sub; 25STDPos, 44HDPos; STRExit; 17ESeries; Die-CastMetal; 0.525in.CblDia
G17K25001001EU
Amphenol Commercial Products
D-Sub Standard Connectors D-SUB IDC CONN D-SUB 25POS SKT IDC GOLD connector, d-sub, metal front flange recept, flat cable termination, 25 socket cont
G17S2500110EU
amphenol canada, corp.
Conn D-Subminiature RCP 25 POS 2.77mm Solder Pot ST Panel Mount 25 Terminal 1 Port D-Sub Standard Connectors 25P RECPT SOLDER CUP FIXED PRECISION CONN D-SUB RCPT 25POS GOLD FLASH Conn; D-Sub; Panel Socket; 25-Pin; G17S Series; SolderPot; Metal Shell

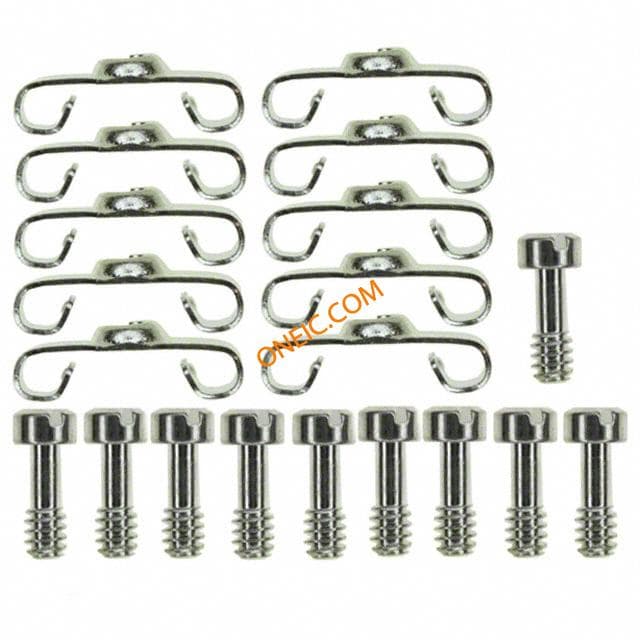

L17D20419EX
amphenol canada, corp.
Connector Accessories Male Screw Lock D-Sub Tools & Hardware 10PACK MALE SCREW LK 9 15 25 37P D-SUBS D-SUB ASSY SCREW LOCK ASSY 10PCS hardware;d-subminiature;male screw lock assembly;4-40 unc-2a thread D SUB SCREW LOCK ASSEMBLY, #4-40, 0.28IN hardware, d-subminiature, male screw lockassembly, 4-40 unc-2a thread

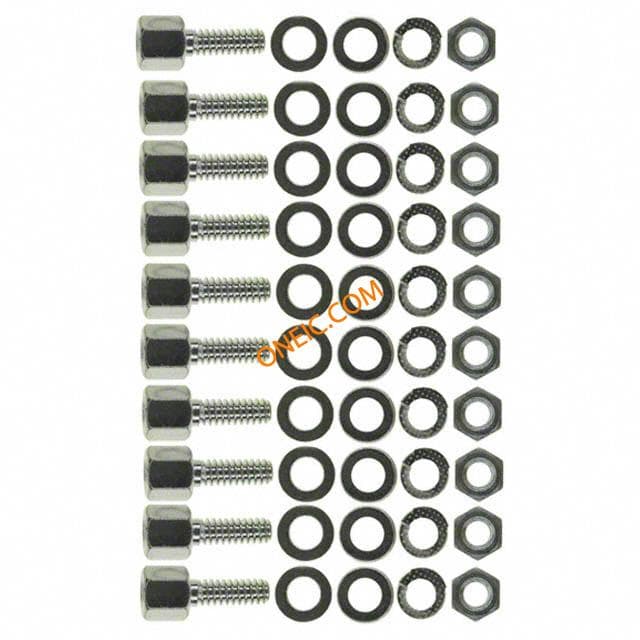

L17D204182TX
