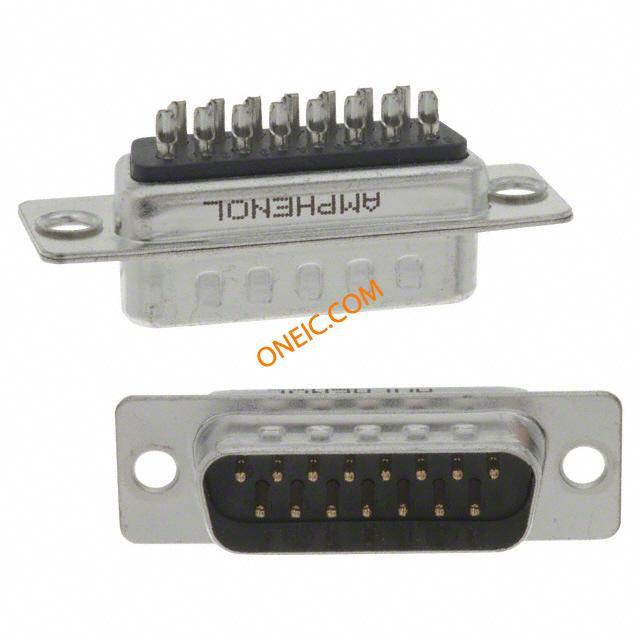

G17S1510110EU
| Manufacturer | |
| Description | Conn D-Subminiature PL 15 POS 2.77mm Solder Pot ST Panel Mount 15 Terminal 1 Port D-Sub Standard Connectors 15P PLUG S0LDER CUP FIXED PRECISION CONN D-SUB PLUG 15POS GOLD FLASH connector, d-sub, fixed contact solder cup plug, 15 stamped and formed pin contact |
| Category |
Business
| Part # Aliases | 03M8098 720-3020 | Product Category | D-Sub Standard Connectors |
| Standard Package | Trays | Factory Pack Quantity | 72 |
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL 94-V0 |
Electrical
| Voltage Rating | 250V | Current Rating (Max) | 5 A |
Mechanical
| Color | Black | Pitch | 2.77 mm |
| Packaging | Bulk | Termination | Solder Pot |
| Contact Form | Signal | Contact Type | Signal |
| Mounting Type | Panel Mount | Shell Plating | Tin |
| Angle of Throw | Straight | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Style | Panel | Number of Rows | 2 |
| Shell Material | Steel | Connector Style | D-Sub |
| Contact Material | Brass | Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Primary Material | D-Subminiature | Termination Style | Solder |
| Number of Contacts | 15 | Dielectric Material | PBT |
| Number of Positions | 15 | Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | Flash | Shell Size, Connector Layout | 2 (DA, A) |
Product Info
| Type | D-Subminiature | Gender | PL |
| Series | D-DF | Manufacturer | G17S |
| Output Configuration | Free Hanging (In-Line) | ||
