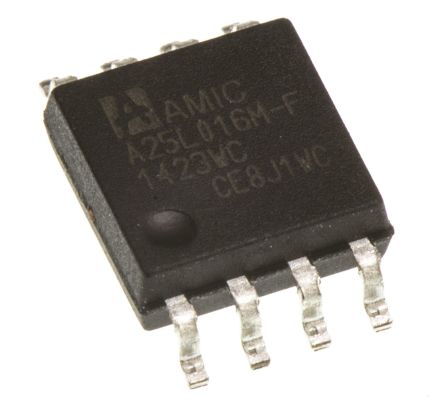

A25L016M-F
| Manufacturer | |
| Description | A25L016M-F, Serial Flash Memory 16Mbit, 8ns, 2.7V, 8-Pin, SOP IC, SM, FLASH, 16MB, SPI, TOP BOOT AMIC Technology 闪存, 16Mbit (8192 页 x 256 字节), 串行接口, 8ns, 2.7 → 3.6 V, 8针 SOP封装 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| Tariff No | 85423261 | Part Status | :25L016 |
Electrical
| Memory | :16M x 1bit | Interface | Serial |
| Access Time | 8ns | Memory Size | 16Mbit |
| Memory Type | :Flash | Voltage Rating | 2.7 V |
| Clock Frequency | :100MHz | Voltage - Supply | :2.7V |
| Voltage - Supply (Min) | 3.6 V | Number of Bits per Element | 8bit |
Mechanical
| Width | 5.28mm | Height | 1.8mm |
| Length | 5.23mm | Weight | 0.000175 |
| Termination | :SMD | Mounting Type | Surface Mount |
| Number of Pins | :8 | Package / Case | :SOP |
| Package Cooled | SOP | Material Finish | :- |
| Size / Dimension | 5.23 x 5.28 x 1.8mm | Number of Positions | 8 |
Product Info
| Number of Words | 2M | Memory Organization | Symmetrical |
Environmental
| Operating Temperature | +70 °C | ||
