C1A1P-489
| Manufacturer | |
| Description | CIRCUIT BRKR 1A 1POLE DINRAIL CIR BRKR MAG-HYDR 1A 240VAC CircuitBreaker1amp,1pole,UL489ratedDinrailmounted |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 12 | ||
Compliance
| RoHS | RoHS Compliant Part | ||
Electrical
| Voltage Rating | 240V | Number of Poles | 1 |
| Current Rating (Max) | 1A | ||
Mechanical
| Termination | Screw | Breaker Type | Magnetic (Hydraulic Delay) |
| Actuator Type | Lever | Mounting Type | DIN Rail |
| Mounting Style | DINRail | Primary Material | CircuitBreaker |

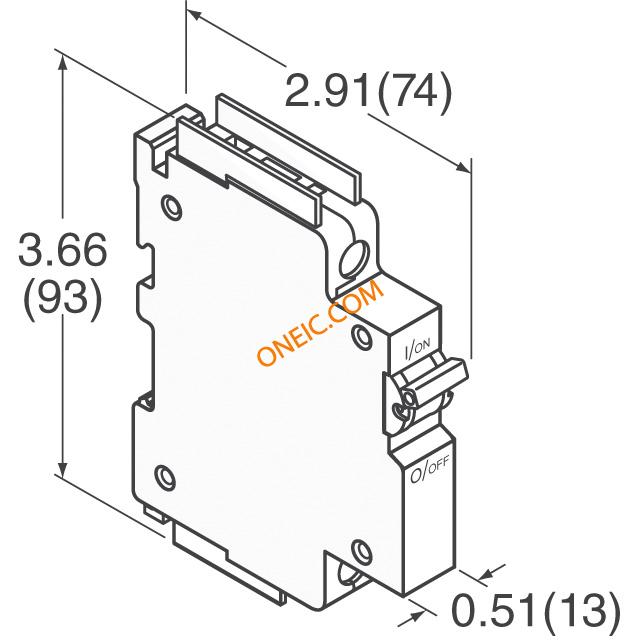

| Size / Dimension | 86Hx13Wx66Dmm | ||
Product Info
| Type | Hydraulic/Magnetic | Features | UL489Approved |
Environmental
| Time to Trip | CurveKMStandard | ||
Documents & Media
PDF Document
