13141060
| Manufacturer | |

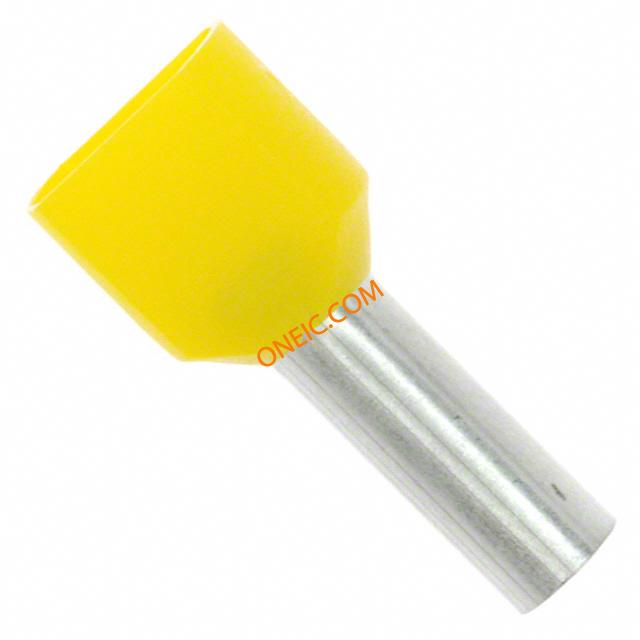

| Description | CONN FERRULE 2WIRE 10AWG Ferrule;10AWG;2;TwinWire;Yellow;25mm;14mm;Copper;Plastic |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 288-1134 | Standard Package | 100 |
Compliance
| RoHS | RoHS Compliant Part | ||
Electrical
| Number of Conductors | 2 | ||
Mechanical
| Size | Two x 10 AWG (6.00mm²) | Color | Yellow |
| Length | 14mm | Insulation | Insulated |
| Wire Gauge | 10 | Length - Pin | 14.00mm |
| Angle of Throw | Straight | Contact Finish | Tin |
| Contact Material | Copper | Length - Overall | 25.00mm |
| Package Quantity | 100 | Primary Material | Insulated |
| Dimensions - Overall | 9.6mm | ||
Product Info
| Type | Two Wire | Style | DIN |
| Manufacturer | DINColorCode | ||
