11121160
| Manufacturer | |

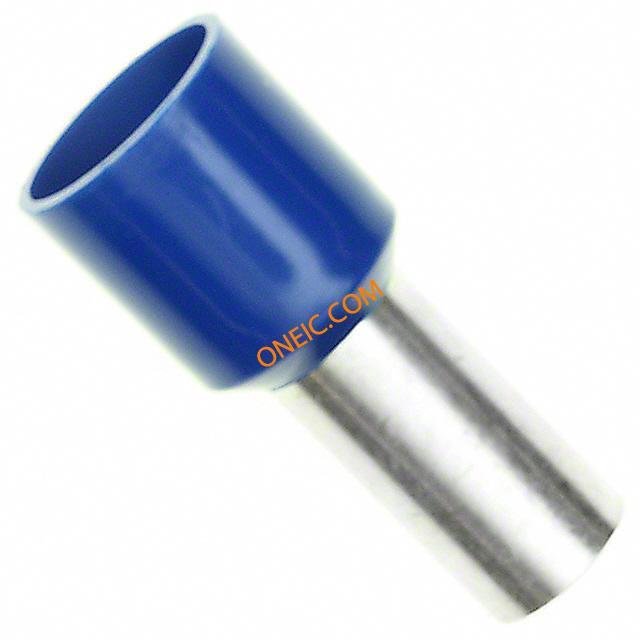

| Description | CONN FERRULE DIN 6AWG BLUE Ferrule;6AWG;InsulatedWire |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 288-1034 | Standard Package | 100 |
Compliance
| RoHS | RoHS Compliant Part | ||
Mechanical
| Size | 6 AWG (16mm²) | Color | Blue |
| Insulation | Insulated | Wire Gauge | 6 |
| Length - Pin | 12.00mm | Angle of Throw | Straight |
| Contact Finish | Tin | Contact Material | Copper |
| Length - Overall | 23.00mm | Package Quantity | 100 |
| Primary Material | Insulated | Stripping Length | 12mm |
| Insulation Diameter | 9.6mm | Dimensions - Overall | 8.8mm |
Product Info
| Type | Single Wire | Style | DIN |
| Manufacturer | DINColorCode | Tool Type Feature | TRAP8-1,TRAP8-4 |
