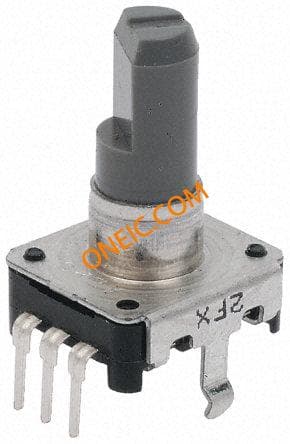

EC12E2420404
| Manufacturer | |
| Description | Alps 24 Pulse Mechanical Rotary Encoder Flat Shaft (Not Indexed), Through Hole ENCODER, VERTICAL, 24 DET, 24PPR Alps 24位置 机械式旋转编码器 扁平轴 (没有索引), 通孔 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85334010 |
Electrical
| Number of Bits | :24 | Current - Output | :0.5mA |
| Voltage - Supply | :5V | Resolution (Bits) | :24 |
| Number of Channels | :2 | Dielectric Strength | :50V |
Mechanical
| Depth | :14mm | Width | :13.2mm |
| Height | :5mm | Length | :5mm |
| Torque | :3mN-m | Weight | 0.001 |
| Shaft Detail | Flat | Mounting Type | Through Hole |
| Connector Type | :Pin | Rotation Angle | :360° |
| Shaft Diameter | :6mm | Number of Positions | :24 |
| Length - Shaft and Bearing | :8.5mm | Rotational Life (Cycles Min) | :30000 |
| Torque - Max Momentary (oz-in / mNm) | :20mN-m | ||
Product Info
| Type | :Vertical | Series | :EC12 |
| Positions Per Level | Not Indexed | Pulses per Revolution | 24 |
Environmental
| Operating Temperature | :70°C | ||
