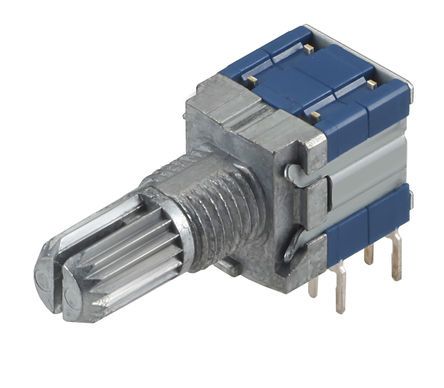

SRBM131300
| Manufacturer | |
| Description | Switch Rotary DP3T 3 18-Tooth Serration Shaft PC Pins 0.1A 16VDC Rotary Switches 0.1 Amp at 16 Volts SRBM131300 Rotary Switch • Rating (max.): 0.1 A 16 VDC • Poles: 2 • Positions: 3 • Changeover angle : 30+/-3° • Operating direction : Horizontal Alps 3位置 旋转开关, 100 mA, 16V dc -30 → +85°C |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Number of I/O | 1 | Voltage Rating | 16 V |
| Number of Poles | 2 | Current Rating (Max) | 0.1@16VDC A |
| Delay Time - Propagation | Non shorting | ||
Mechanical
| Depth | 11mm | Width | 27.5mm |
| Height | 10mm | Rotation | 4020mNm |
| Packaging | Bulk | Step Angle | 30+/-3° |
| Contact Type | Non Shorting | Actuator Type | Top |
| Contact Shape | 30 deg | Hole Diameter | 0.9 mm |
| Mounting Type | Through Hole | Terminal Type | PC Pins |
| Actuator Color | 灰色 | Angle of Throw | 30° |
| Connector Type | PC 引脚 | Actuator Length | L: 15mm |
| Size / Dimension | 27.5 x 10 x 11mm | Termination Style | Solder Pin |
| Number of Contacts | 2 | Number of Positions | 3 |
| Switch Actuation Level | DP3T | Contact Layout, Typical | DP3T |
| Number of Poles per Deck | 2 | ||
Product Info
| Type | Switches | Function | Y |
| Direction | Horizontal | Applications | 车载 AV 设备 |
| Card Standard | Rotary Switch | Configuration | 18-tooth serration |
| Other Specifications | 1600 | ||
Environmental
| Mechanical Life | 10000 Cycles | Operating Temperature | -40 to 85 °C |
