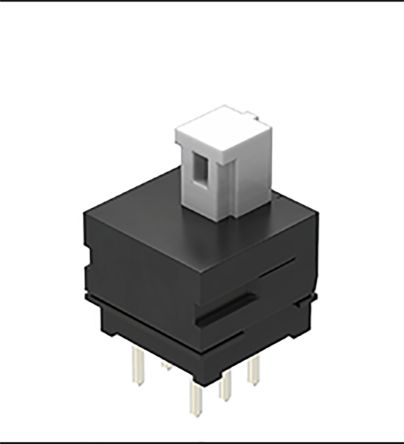

SPPH120400
| Manufacturer | |
| Description | Electromechanical Switch Push Switch DP 0.1A Pushbutton Switches VERT LATCHING 2 POLE Pushbutton Switch • Rating (max.): 0.1 A 30 VDC • Poles: 2 • Operation: Latching • Operating Force: 2(+1,-0.7) N Alps 白色 双极转换 PCB 闭锁 按钮开关, 0.1 A |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Standard Switches | Product Category | Pushbutton Switches |
| Standard Package | Bulk | Factory Pack Quantity | 1500 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Operation | Latching | Voltage Rating | 30 V |
| Number of Poles | 2 | Switch Function | ON - OFF |
| Current Rating (Max) | 100 mA | Contact Rating @ Voltage | 30V |
| Delay Time - Propagation | Non shorting | ||
Mechanical
| Packaging | Bulk | Contact Form | DPDT |
| Travel Range | 1.5mm | Actuator Type | Square |
| Mounting Type | 印刷电路板 | Terminal Type | Straight |
| Actuator Color | 白色 | Mounting Style | Through Hole |
| Operating Force | 2(+1,-0.7) N | Termination Style | Solder Pin |
| Exterior Housing Color | 黑色 | Contact Layout, Typical | 双极转换 |
| Rotational Life (Cycles Min) | 2.5mm | ||
Product Info
| Type | Push Switch | Series | SPPH1 |
| Function | Y | Card Standard | Pushbutton Switch |
| Other Specifications | 4000 | ||
Environmental
| Seal Rating | Unsealed | Operating Temperature | -40 °C |
