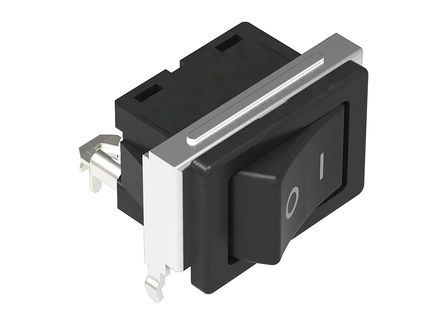

SDDJE12400
| Manufacturer | |
| Description | Electromechanical Switch Power Switch SPST 10A Rocker Switches SPST Right Angle With Frame I,O POWER SWITCH 10A 250V AC QUALIFIED TYPE Switch Rocker ON OFF SPST PC Pins Curved Rocker 10A 250VAC Bulk Power Switches 10A 250V AC Qualified Power Switch SDDJE Series Type: Rocker Circuit Arrangement: SPST Travel: 3.5mm Operating Force: 32N Mountin Method: Snap-in Terminal Style: Right angle Frame: With Alps 单刀单掷 黑色 翘板开关, 维护, 10 A |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Bulk | Factory Pack Quantity | 250 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 250 V | Switch Function | 维护 |
| Contact Resistance | 100mΩ | Current Rating (Max) | 10 A |
| Contact Rating @ Voltage | 10 A at 250 VAC | Voltage - Rated AC (Phase to Phase) | 250V |
Mechanical
| Packaging | Bulk | Contact Form | SPST |
| Legend Color | 白色 | Actuator Type | Rocker |
| Cable Opening | 12.9mm | Mounting Type | Snap In |
| Actuator Color | 黑色 | Connector Type | 直角 PC 引脚 |
| Mounting Style | Through Hole | Termination Style | Solder Pin |
| Length - Below Flange | 19.9mm | Contact Layout, Typical | 单刀单掷 |
| Panel Cutout Dimensions | 19.9 x 12.9mm | ||
Product Info
| Type | Power Switch | Series | SDDJE |
| Function | Y | Card Standard | Rocker Switch |
| Legend (Text) | I, O | Other Specifications | 矩形 |
Environmental
| Mechanical Life | 10000Cycles | Operating Temperature | -10 °C |
