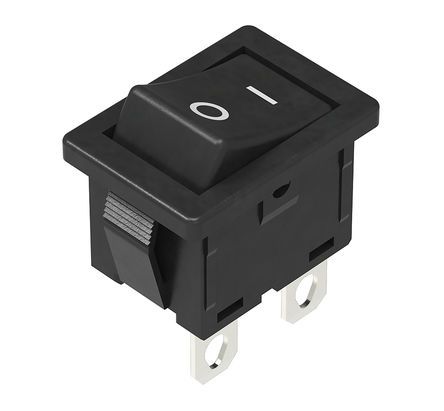

SDDJE10700
| Manufacturer | |
| Description | Electromechanical Switch Power Switch SPST 10A Switch Rocker ON OFF SPST Quick Connect Curved Rocker 10A 250VAC Bulk Power Switches 10A 250V AC Qualified Power Switch SDDJE Series Type: Rocker Circuit Arrangement: SPST Travel: 3.5mm Operating Force: 32N Mountin Method: Snap-in Terminal Style: Lead Frame: Without Alps 单刀单掷 黑色 翘板开关, 维护, 10 A |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Bulk | ||
Electrical
| Switch Function | 维护 | Contact Resistance | 100mΩ |
| Current Rating (Max) | 10 A | Voltage - Rated AC (Phase to Phase) | 250V |
Mechanical
| Legend Color | 白色 | Cable Opening | 12.9mm |
| Actuator Color | 黑色 | Connector Type | Wire Lead |
| Length - Below Flange | 19.4mm | Contact Layout, Typical | 单刀单掷 |
| Panel Cutout Dimensions | 19.4 x 12.9mm | ||
Product Info
| Type | Power Switch | Function | Y |
| Card Standard | Rocker Switch | Legend (Text) | I, O |
| Other Specifications | 矩形 | ||
Environmental
| Mechanical Life | 10000Cycles | Operating Temperature | -10 °C |
