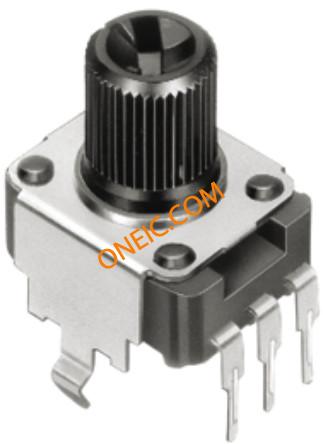

RK09K1130AV7
| Manufacturer | |
| Description | Res POT 5K Ohm 20% 6mm Snap-In Panel Mount Potentiometers 5 KOhms 30% Audio single pot. 5K Vertical 20mm,1B Rotary Potentiometer • Total Resistance : 5kΩ • Mounting direction : Vertical type • Length of shaft: 20mm • Center detent: Without • Number of resistor elements : Single-unit (20V DC) Alps RK09K 系列 5kΩ ±20% 线性 电位器 , 6 mm 直径轴, 通孔 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Potentiometer | Standard Package | Bulk |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Coil Type | Without | Tolerance | 20 % |
| Resistance | 5 KOhm | Power - Rated | 0.05W |
| Voltage Rating | 50 V | Number of Elements | Single-unit (20V DC) |
| Resistance Tolerance | 5kΩ | Frequency - Operating | 1 |
| Resistance - Initial (Ri) (Min) | 5kΩ | ||
Mechanical
| Depth | 6.8mm | Length | 9.8mm |
| Packaging | Bulk | Shaft Detail | Driver |
| Mounting Type | Panel Mount | Mounting Style | Through Hole |
| Shaft Diameter | 6 mm | Terminal Style | 针 |
| Diameter - Shaft | 6 mm。 | Termination Style | Pin |
| Mounting Hole Diameter | 1mm | Length - Shaft and Bearing | 20 mm |
Product Info
| Type | Potentiometer | Detent | Without |
| Series | RK09K | Function | Y |
| Card Standard | Rotary Potentiometer | Number of Turns | 1 |
| Type Attributes | Linear | Other Specifications | 1000 |
Environmental
| Operating Temperature | -10 to 70 °C | ||
