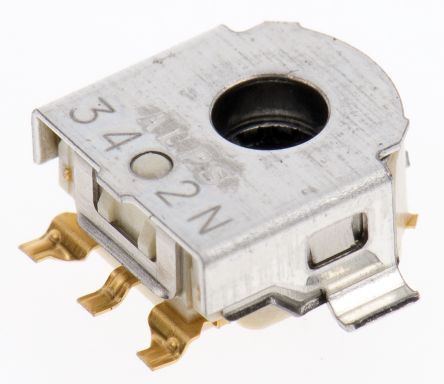

EC05E1220401
| Manufacturer | |
| Description | VERTICAL/2.7MM 5MM SIZE HOLLOW SHAFT ENCODER 4,5mm Vertical encoder 12 Pulses 12 DET Encoders 5mm 12 PULSES 12 DET EC05E1220401 Mechanical Encoder Rotary Incremental Hollow Straight Quadrature Digital Square Wave 12PPR Bracket Mount PC Pins ENCODER,VERTICAL, 5MM, 12DET, 12PPR 4,5mmVerticalencoder12Pulses12DET Incremental Type Encoder • Structure: Vertical • Number of Detent: 12 • Number of Pulse: 12 • Actuator Length: None • Push-on Switch: Without Alps 12位置 增量 机械式旋转编码器, 2.2 mm直径 空心轴 (没有索引), 支架安装，表面贴装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Mechanical Encoders | Product Category | Encoders |
| Factory Pack Quantity | 2000 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85365015 | Rad Hardened | No |
Electrical
| Output | Quadrature | Resolution | 12 PPR |
| Number of Bits | :12 | Voltage - Supply | 5 |
| Number of Channels | 2 | ||
Mechanical
| Torque | :1.6N-m | Weight | 0.00018 |
| Packaging | Reel | Shaft Detail | Hollow |
| Mounting Type | Bracket Mount, Surface Mount | Terminal Type | PC Pins |
| Mounting Style | Bracket | Shaft Diameter | 2.2 mm |
| Termination Style | Through Hole | Number of Positions | 12 |
| Mounting Hole Diameter | 0.62mm | Rotational Life (Cycles Min) | :100000 |
Product Info
| Detent | Yes | Encoder Type | Incremental |
| Built in Switch | No | Positions Per Level | Not Indexed |
| Other Specifications | No Switch | Pulses per Revolution | 12 |
Environmental
| Mechanical Life | 100000 | Operating Temperature | - 30 C to + 85 C |
| Operating Temperature - Junction | 85C | ||
