9058C BK005
| Manufacturer | |
| Description | Coaxial Cables 20AWG 1C SHIELD 100ft SPOOL BLACK CABLE RG58C/U 50 OHM COAXIAL CABLE, COAX, RG58C/U, BLACK, 30.5M |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Coaxial Cables | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85442000 | ||
Electrical
| Impedance | 50 Ohms | Voltage Rating | 1.9 kV |
| Conductor Strand | 19 Strands / 33 AWG | Connector Impedance | RG58 C / U |
| Number of Conductors | :19 x 0.007mm | VoP, Velocity of Propagation | 66 |
Mechanical
| Color | Black | Length | 100 ft |
| Weight | 3.300 lbs | Packaging | Spool |
| Shielding | Shielded | Cable Type | Coaxial |
| Wire Gauge | 20 | Cable Group | RG-58C |
| Shield Type | Braid | Jacket Color | Black |
| Outer Diameter | :4.95mm | Shield Coverage | 95% |
| Shield Material | Copper, Tinned | Length - Overall | :100ft |
| Conductor Material | Tinned Copper | Diameter - Outside | :4.95mm |
| Dielectric Diameter | 0.116" (2.95mm) | Dielectric Material | Solid Polyethylene (PE) |
| Wire Gauge or Range - AWG | :20AWG | Jacket (Insulation) Diameter | 0.195" (4.95mm) |
| Jacket (Insulation) Material | Polyvinyl Chloride - PVC | ||
Product Info
| Usage | Network | Series | 9058C |
Environmental
| Operating Temperature | -20°C ~ 60°C | ||
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
PDF Document
PDF Document
Similar Parts

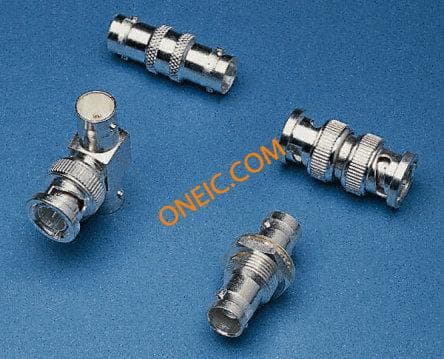

1-1478046-0
