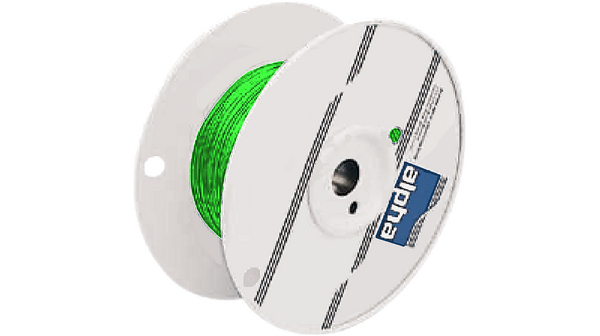

7053 GR001
| Manufacturer | |
| Description | Hook-up Wire 26AWG 7/34 IRRPVC 1000ft SPOOL GREEN HOOK-UP STRND 26AWG GREEN 1000' M16878/1-26-5 7STR TNC IRPVC GRN 105C 600V ALPHA PN 7053-4 Stranded wire, 0.12 mm², green Tin-plated copper PVC, 7053 GR001, Alpha Wire |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Hook-up Wire | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | RoHS Compliant | YES |
| Military Specification | MIL-W-16878/4 (TYPE E) | Material Flammability Rating | No |
Electrical
| Voltage | 150V | Voltage Rating | 150 V |
| Conductor Strand | 7/34 | Number of Conductors | 7 x ø 0.16 mm |
Mechanical
| Length | 1000 ft | Weight | 2 lbs |
| Packaging | Spool | Shielding | unshielded |
| Wire Type | Hook-Up/Lead Wire | Cable Type | Hook Up |
| Insulation | 1.02 | Wire Gauge | 26 |
| Shield Type | NOT SHIELDED | Jacket Color | Green |
| Conductor Type | Tin-plated copper | Insulation Color | GREEN |
| Color - Connectors | green | Conductor Material | Copper, Tinned |
| Diameter - Outside | 1.02 mm | Cross Section Shape | 0.12 mm² |
| Insulation Material | Polyvinyl Chloride (PVC), Irradiated | Conductor Insulation | PVC |
| Number of Cable Pairs | 7 x 34 | Wire Gauge or Range - AWG | 26 AWG |
| Wire Gauge or Range - mm2 | 26 AWG (AMERICAN WIRE GAUGE) | Jacket (Insulation) Diameter | 0.039" (0.99mm) |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) | Jacket (Insulation) Thickness | 0.010" (0.25mm) |
Product Info
| Type | Soldering Iron Resistant | Series | 7053 |
| Product Type | M16878 | ||
Environmental
| Ratings | UL Style 1429 | Temperature Rating | 105 DEGREES CENTIGRADE (221 F) |
| Operating Temperature | -55°C ~ 105°C | Maximum Temperature Limit | + 105 C |
