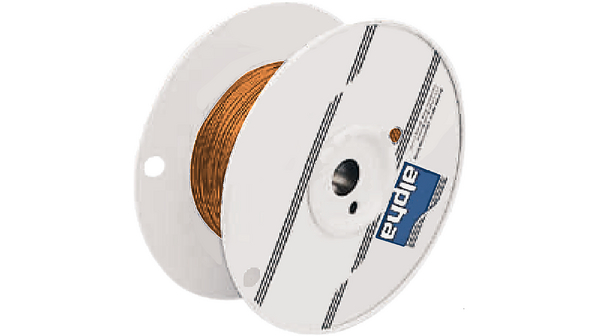

7053 BR001

Manufacturer	Alpha Wire Corporation
Description	Hook-up Wire 26AWG 7/34 IRRPVC 1000ft SPOOL BROWN HOOK-UP STRND 26AWG BROWN 1000' Hook-up Wire 1Conductors 26AWG 305m 1.02mm Tinned Copper Brown 150V WIRE, UL1429, 26AWG, BROWN, 304.8M Stranded wire, 0.12 mm², brown Tin-plated copper PVC, 7053 BR001, Alpha Wire
Category	Cables, Wires, and ComponentsSingle Conductor CablesSingle Core Control Cable

对参数有疑问？问 AI 助手

Business

Product Category

Hook-up Wire

Standard Package

Compliance

RoHS	RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
Tariff No	85444995

Electrical

Voltage	150V	Voltage Rating	150 V
Conductor Strand	7/34	Current Rating (Max)	:4A
Number of Conductors	:7 x 0.16mm

Mechanical

Length	1000 ft	Weight	2 lbs
Packaging	Spool	Wire Type	Hook-Up/Lead Wire
Cable Type	Hook Up	Wire Gauge	26
Jacket Color	Brown	Outer Diameter	:1.02mm
Length - Overall	:1000ft	Conductor Material	Copper, Tinned
Diameter - Outside	1.02 mm	Insulation Material	Polyvinyl Chloride (PVC), Irradiated
Number of Cable Pairs	7 x 34	Wire Gauge or Range - AWG	:26AWG
Jacket (Insulation) Diameter	0.039" (0.99mm)	Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.010" (0.25mm)

Product Info

Type

Soldering Iron Resistant

Series

7053

Environmental

Ratings	UL Style 1429	Operating Temperature	-55°C ~ 105°C
Maximum Temperature Limit	+ 105 C
