7053 BK005
| Manufacturer | |

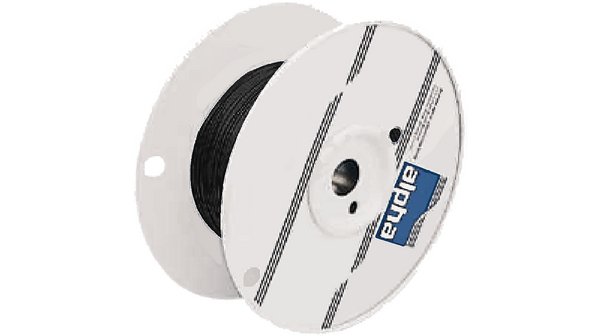

| Description | Hook-up Wire 26AWG 7/34 IRRPVC 100ft SPOOL BLACK HOOK-UP STRND 26AWG BLACK 100' Wire; Hook-Up; 26 AWG; 7/34; 0.010 in.; 0.040 in.; -55 degC; Irradiated PVC; 30m WIRE, BLK, 26AWG, 7/34AWG, 30.5M Stranded wire, 0.12 mm², black Tin-plated copper PVC, 7053 BK005, Alpha Wire Alpha Wire 26 AWG 黑色护套 内部连线电线, 线芯绞距 7/0.16 mm, 150 V, 30m 长, 7053 架空电缆型 UL1429 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Hook-up Wire | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85444995 | ||
Electrical
| Voltage | 150V | Voltage Rating | 150 V |
| Conductor Strand | 7/34 | Number of Conductors | :7 x 0.16mm |
Mechanical
| Length | 100 ft | Weight | 3.200000 oz |
| Packaging | Spool | Wire Type | Hook-Up/Lead Wire |
| Cable Type | Hook Up | Wire Gauge | 26 |
| Jacket Color | Black | Outer Diameter | :1.02mm |
| Length - Overall | :100ft | Conductor Material | Copper, Tinned |
| Diameter - Outside | 1.02 mm | Insulation Material | Polyvinyl Chloride (PVC), Irradiated |
| Number of Cable Pairs | 7 x 34 | Wire Gauge or Range - AWG | :26AWG |
| Jacket (Insulation) Diameter | 0.039" (0.99mm) | Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.010" (0.25mm) | ||
Product Info
| Type | Soldering Iron Resistant | Series | 7053 |
Environmental
| Ratings | UL Style 1429 | Operating Temperature | -55°C ~ 105°C |
| Maximum Temperature Limit | + 105 C | ||
