5856 GR005
| Manufacturer | |
| Description | Hook-up Wire 20AWG 19/32 PTFE 100ft SPOOL GREEN HOOK-UP STRND 20AWG GREEN 100' Wire; Hook-Up; 20 AWG; 19/32; 0.010 in.; 0.059 in.; -60 degC; 600 V; Green; 30m WIRE, UL1213, 20AWG, GREEN, 30.5M Alpha Wire 20 AWG 绿色护套 PTFE 设备电线, 截面积 0.62 mm², 线芯绞距 19/0.20 mm, 600 V, 8.2 A, 30m 长, TFE 特氟隆绝缘型 UL1213 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | Q6090081 | Product Category | Hook-up Wire |
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85444995 | ||
Electrical
| Voltage | 600V | Voltage Rating | 600 V |
| Conductor Strand | 19/32 | Current Rating (Max) | :17A |
| Number of Conductors | :19 x 0.2mm | ||
Mechanical
| Length | 100 ft | Weight | 12.800001 oz |
| Packaging | Spool | Wire Type | Hook-Up/Lead Wire |
| Cable Type | Hook Up | Wire Gauge | 20 |
| Jacket Color | Green | Outer Diameter | :1.5mm |
| Material - Core | :PTFE | Material Finish | :- |
| Insulation Color | :Green | Length - Overall | :100ft |
| Conductor Material | Copper, Silver Coated | Diameter - Outside | 1.5 mm |
| Insulation Material | Polytetrafluoroethylene (PTFE) | Number of Cable Pairs | 19 x 32 |
| Wire Gauge or Range - AWG | :20AWG | Jacket (Insulation) Diameter | 0.058" (1.47mm) |
| Jacket (Insulation) Material | Polytetrafluoroethylene (PTFE) | Jacket (Insulation) Thickness | 0.010" (0.25mm) |
| UL Insulation System Approval | :UL1213 | ||
Product Info
| Type | MIL-DTL-16878/4 (Type E) | Series | 5856 |
| Features | Outstanding electrical properties | Number of Cores | :1 |
Environmental
| Ratings | UL Style 1213 | Operating Temperature | -60°C ~ 200°C |
| Maximum Temperature Limit | + 200 C | ||
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
Similar Parts
5856 GR001
Alpha Wire
Hook-up Wire 20AWG 19/32 PTFE 1000ft SPOOL GREEN HOOK-UP STRND 20AWG GREEN 1000' WIRE, UL1213, 20AWG, GREEN, 304.8M
$4026.7560
Details

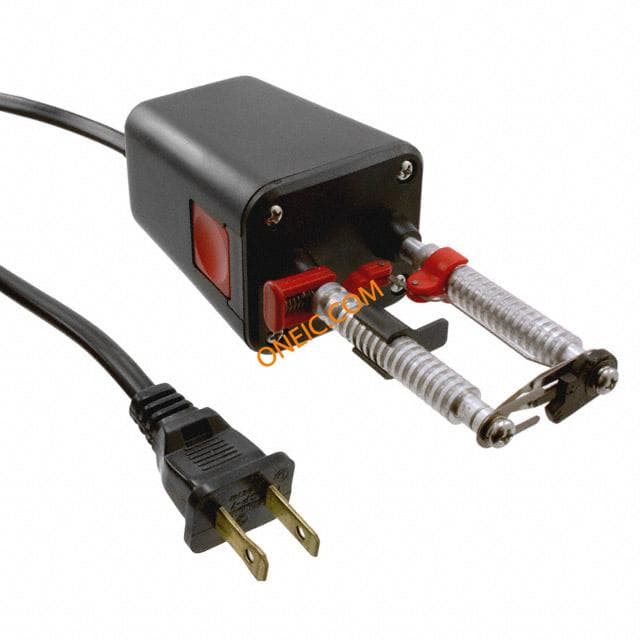

PTS-30
