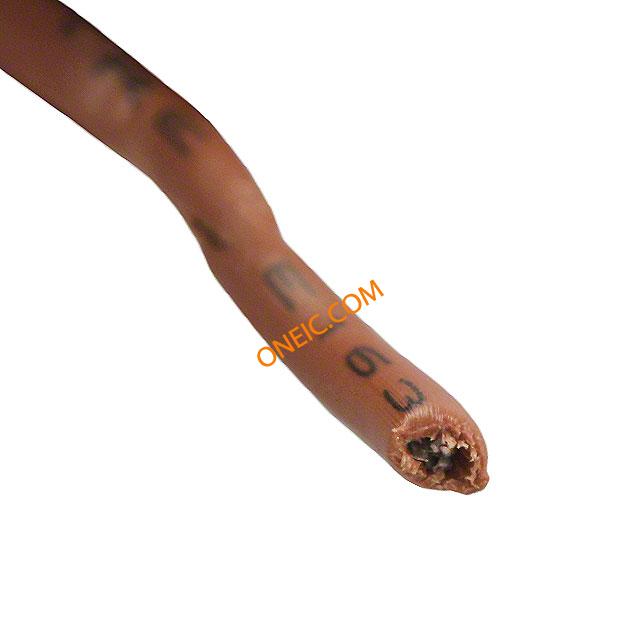

3053 BR001

Manufacturer	Alpha Wire Corporation
Description	Hook-up Wire 20AWG 10/30 PVC 1000ft SPOOL BROWN HOOK-UP STRND 20AWG BROWN 1000' WIRE, UL1007, 20AWG, BROWN, 305M Hook-Up-Wire, Premium, 20 AWG, 300 V, 10/30 Stranding, PVC Insulation, -40 to 105 Degrees, 0.069 Diameter Insulation, 0.016 Insulation Thickness Alpha Wire 20 AWG 棕色护套内部连线电线, 截面积 0.51 mm², 线芯绞距 10/0.25 mm, 300 V, 10 A, 305m 长, UL1007型 UL1007
Category	Cables, Wires, and ComponentsSingle Conductor CablesSingle Core Control Cable

对参数有疑问？问 AI 助手

Business

Product Category

Hook-up Wire

Standard Package

RoHS	RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
Tariff No	85444995

Length	1000 ft	Weight	5 lbs
Packaging	Spool	Wire Type	Hook-Up/Lead Wire
Cable Type	Hook Up	Wire Gauge	20
Jacket Color	Brown	Outer Diameter	:1.8mm
Material - Core	:PVC	Material Finish	:-
Insulation Color	:Brown	Length - Overall	:1000ft
Conductor Material	Copper, Tinned	Diameter - Outside	1.75 mm
Insulation Material	Polyvinyl Chloride (PVC)	Number of Cable Pairs	10 x 30
Wire Gauge or Range - AWG	:20AWG	Jacket (Insulation) Diameter	0.069" (1.75mm)
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Jacket (Insulation) Thickness	0.016" (0.41mm)
UL Insulation System Approval	:UL1007
