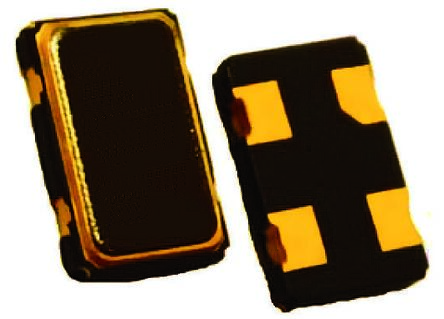

S533025-32.768K-X-15
| Manufacturer | |
| Description | S533025-32.768K-X-15, Crystal Oscillator, 32.768kHz, ±25ppm HCMOS 15pF, 4-Pin SMD, 5 x 3.2 x 1.3mm XOSMD3.3V32.768KHz3.2x5mm AKER 32.768 kHz 晶体振荡器, ±25ppm, HCMOS输出, 15pF, 4针 表面安装器件封装 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant Part | ||
Electrical
| Symmetry | 40/60% | Output Signal | HCMOS |
| Voltage Rating | 3.14 V | Load Capacitance | 15pF |
| Voltage - Supply | 3.14 V | Frequency Stability | ±25ppm |
| Frequency Tolerance | ±3 ppm/yr | Frequency - Output 1 | 32.768 kHz |
| Voltage - Supply (Min) | 3.46 V | Max Propagation Delay @ V, Max CL | 40/60% |
Mechanical
| Width | 3.2mm | Height | 1.3mm |
| Length | 5mm | Mounting Type | Surface Mount |
| Number of Pins | 4 | Package Cooled | SMD |
| Package Quantity | SMT | Size / Dimension | 5 x 3.2 x 1.3mm |
| Number of Positions | 4 | ||
Product Info
| Function | Y | ||
Environmental
| Operating Temperature | +85 °C | ||
