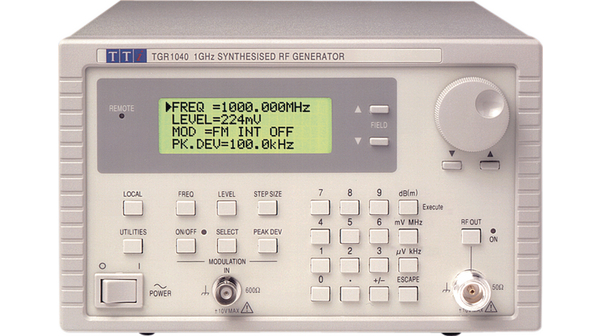

TGR1040
| Manufacturer | |
| Description | RSCAL(3395171),TGR1040 1GHz rf generator TGR1040 synthesised RF generator,1GHz Signal generator, 1 GHz, TGR1040, Aim-TTi Aim-TTi 1000MHz 函数发生器, GPIB/RS232接口 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | Not Applicable | ||
Electrical
| Output | 50Ω | Accuracy | ±2ppm |
| Impedance | 50Ω | Interface | GPIB, RS232 |
| Vgs (Max) | 1000 | Modulation | Yes |
| Resolution | 1000 | Power - Input | 110 VAC |
| Frequency - Max | 1000MHz | Frequency Range | 1000MHz |
| Input Impedance | 100 kΩ | Frequency Stability | ±2ppm |
| Frequency Tolerance | 10MHz | Amplitude (Level) Range | 0.5 |
Mechanical
| Size | 330 x 212 x 130 mm | Width | 212mm |
| Height | 130mm | Length | 330mm |
| Weight | 4.6kg | Flow (CFM) | 是 |
| Connector Type | Type C - European Plug, Type G - British 3-pin | Size / Dimension | 330 x 212 x 130mm |
Product Info
| Function | 1 | Plug Type | Type C - European Plug, Type G - British 3-pin |
| Calibration | RSCAL | Description | Signal generator, 1 GHz |
| Part Number | TGR 1040 | Model Number | TGR 1040 |
| Display Style | 20 character 4-line LCD display | ||
Environmental
| Operating Temperature | +40°C | ||
