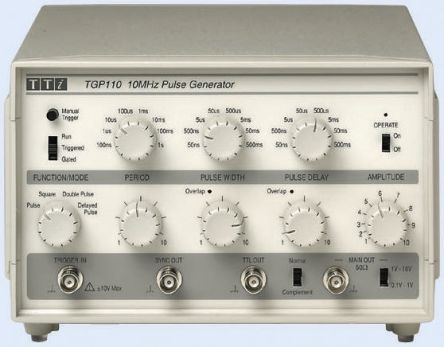

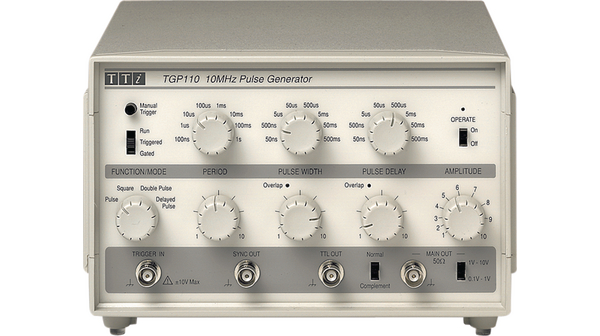

TGP110
| Manufacturer | |
| Description | RSCAL(2785084),TGP110 pulse generator TGP110 Pulse generator,0.1Hz to 10MHz Pulse generator, 10 MHz, TGP110, Aim-TTi Aim-TTi 0.1 Hz → 10 MHz 脉冲发生器 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | Not Applicable | ||
Electrical
| Jitter | 0.1% | Vgs (Max) | 10 |
| Resolution | 0.1 | Wavelength | Pulse |
| Power - Input | 110 VAC | Visible Output | Yes |
| Frequency - Max | 10MHz | Frequency - Min | 0.1 Hz |
| Input Impedance | 10 kΩ | Maximum Payload | 5s |
| Output Function | 是 | Rise / Fall Time (Typ) | 15ns |
| Amplitude (Level) Range | 10 | Delay Time - Propagation | 5s |
Mechanical
| Size | 230 x 220 x 140 mm | Width | 220mm |
| Height | 140mm | Length | 230mm |
| Weight | 1.6kg | Bandwidth | 50ns |
| Connector Type | Type C - European Plug, Type G - British 3-pin | Size / Dimension | 230 x 220 x 140mm |
| Minimum Bend Radius | 50ns | Pulse Width Distortion (Max) | 5s |
Product Info
| Mode | Delayed, Delayed Pulse, Double Pulse, Gated, Normal Pulse, Run, Square Pulse, Triggered | Function | 1 |
| Plug Type | Type C - European Plug, Type G - British 3-pin | Calibration | RSCAL |
| Description | Pulse generator, 10 MHz | Part Number | TGP 110 |
| Model Number | TGP 110 | Other Specifications | 5s |
Environmental
| Operating Temperature | +40°C | ||
