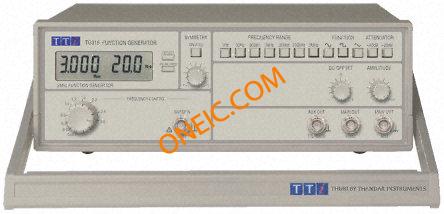

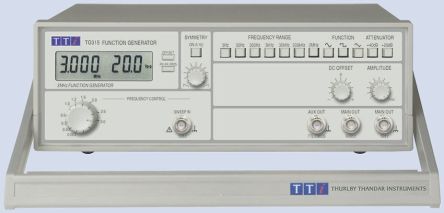

TG315
| Manufacturer | |
| Description | RSCAL(4658906),TG315 function generator TG315 digital display function generator Function generator 1x3 MHz, TG315, Aim-TTi Aim-TTi 3MHz 函数发生器 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | Not Applicable | ||
Electrical
| Output | 0 → 5V | Accuracy | ±10ppm |
| Frequency | Yes | Impedance | 50 Ω, 600 Ω |
| Vgs (Max) | 3 | Resolution | 2 |
| Wavelength | DC | Output Type | 0 → 5V |
| Power - Input | 110 VAC | Frequency - Max | 3MHz |
| Frequency Range | 3MHz | Input Impedance | 10 kΩ |
| Output Function | 0 → 5V | Attenuation - Typ | 0 dB, -20 dB, -40 dB, -60 dB |
| Frequency Stability | ±10ppm | Frequency Tolerance | 0.03Hz |
| Insertion Loss (Max) | -60 dB, -40 dB, -20 dB, 0 dB | Voltage - Input (Min) | ±10 |
| Voltage - Supply (Min) | ±5 | Amplitude (Level) Range | Yes |
Mechanical
| Size | 260 x 235 x 88 mm | Width | 260mm |
| Height | 88mm | Length | 235mm |
| Weight | 1.9kg | Connector Type | Type C - European Plug, Type G - British 3-pin |
| Size / Dimension | 235 x 260 x 88mm | ||
Product Info
| Function | 1 | Plug Type | Type C - European Plug, Type G - British 3-pin |
| Calibration | RSCAL | Description | Function generator TG-315 |
| Part Number | TG315 | Model Number | TG315 |
| Other Specifications | 是 | ||
Environmental
| Operating Temperature | +40°C | ||
