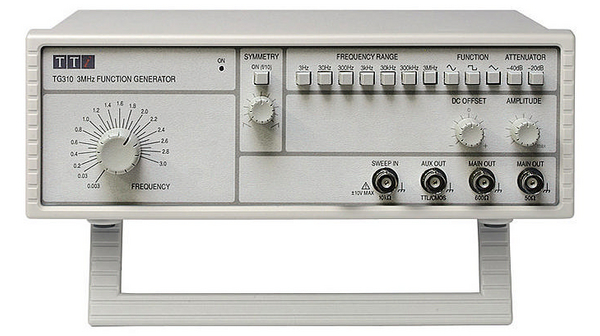

TG310
| Manufacturer | |
| Description | RSCAL (7312846) Function Generator Function Generator 3MHz Vernier control Function generator 1x3 MHz, TG310, Aim-TTi Aim-TTi 3MHz 函数发生器 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | Compliant | ||
Electrical
| Output | 0 → 5V | Frequency | Yes |
| Impedance | 50 Ω, 600 Ω | Vgs (Max) | 3 |
| Resolution | 2 | Wavelength | DC |
| Output Type | 0 → 5V | Power - Input | 110 VAC |
| Frequency - Max | 3MHz | Frequency Range | 3MHz |
| Input Impedance | 10 kΩ | Output Function | 0 → 5V |
| Attenuation - Typ | 0 dB, -20 dB, -40 dB, -60 dB | Frequency Tolerance | 0.03Hz |
| Insertion Loss (Max) | -60 dB, -40 dB, -20 dB, 0 dB | Voltage - Input (Min) | ±10 |
| Voltage - Supply (Min) | ±5 | Amplitude (Level) Range | Yes |
Mechanical
| Size | 260 x 235 x 88 mm | Width | 260mm |
| Height | 88mm | Length | 235mm |
| Weight | 1.9kg | Connector Type | Type C - European Plug, Type G - British 3-pin |
| Size / Dimension | 235 x 260 x 88mm | ||
Product Info
| Function | 1 | Plug Type | Type C - European Plug, Type G - British 3-pin |
| Calibration | RSCAL | Part Number | TG 310 |
| Model Number | TG 310 | Other Specifications | 是 |
Environmental
| Operating Temperature | +40°C | ||
