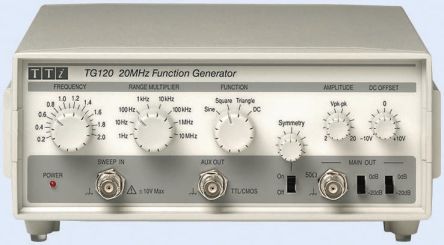

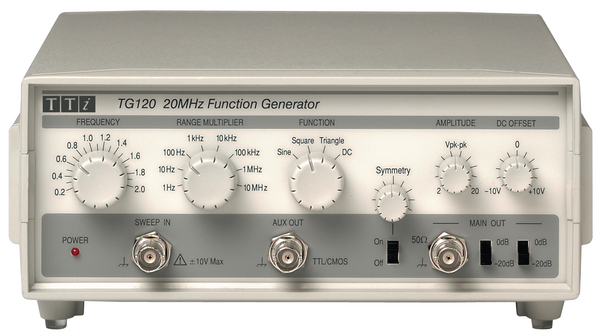

TG120
| Manufacturer | |
| Description | TG120 Function generator,0.2Hz-20MHz RSCAL (2468925) TG120 Function Generator Generator: function; range: 0,2Hz÷20MHz
sale Function generator 1x20 MHz, TG120, Aim-TTi Aim-TTi 20MHz 函数发生器 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | Not Applicable | ||
Electrical
| Output | 0 → 5V | Vgs (Max) | 20 |
| Modulation | Yes | Resolution | 10 |
| Wavelength | sinus, triangle, squarewave plus DC | Output Type | 0 → 5V |
| Power - Input | 110 VAC | Frequency - Max | 20MHz |
| Frequency Range | 20MHz | Input Impedance | 82 kΩ |
| Output Function | 0 → 5V | Attenuation - Typ | -20dB |
| Frequency Tolerance | 0.2Hz | Insertion Loss (Max) | -20dB |
| Voltage - Supply (Min) | ±10 | Amplitude (Level) Range | 10 |
Mechanical
| Size | 230 x 220 x 82 mm | Width | 220mm |
| Height | 82mm | Length | 230mm |
| Weight | 1.5kg | Flow (CFM) | 是 |
| Connector Type | Type C - European Plug, Type G - British 3-pin | Size / Dimension | 230 x 220 x 82mm |
Product Info
| Type | function | Function | 1 |
| Plug Type | Type C - European Plug, Type G - British 3-pin | Calibration | RSCAL |
| Description | Function generator 20 MHz | Part Number | TG120 |
| Model Number | TG120 | Number of Units | 1 |
| Functions, Extra | Linear Sweep | ||
Environmental
| Operating Temperature | +40°C | ||
