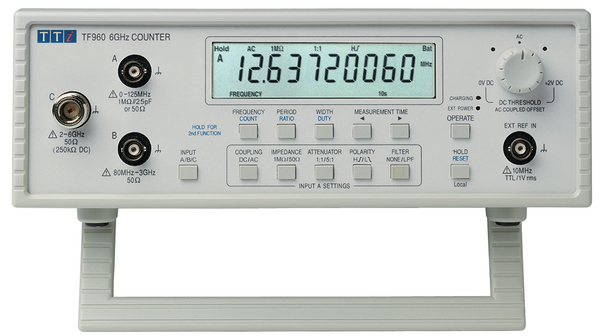

TF960
| Manufacturer | |
| Description | Frequency counter 6GHz RSCAL(7683441) Frequency counter 6GHz UKAS(7683441) Frequency counter 6GHz Universal Frequency Counter 6 GHz, TF960, Aim-TTi Aim-TTi 6000MHz 计频器 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | Exempt | Part Status | 2 years |
Electrical
| Interface | USB | Resolution | 20ns |
| Input Signal | Frequency | Power - Input | NiMH |
| Counter/Timers | 9999999999 | Voltage Rating | 30V |
| Frequency - Max | 6000MHz | Frequency - Min | 0.001 Hz |
| Frequency Range | 0.001 Hz...6 GHz | Input Impedance | 1 MΩ, 50 Ω |
| Voltage - Supply | 30V | Attenuation - Typ | 1:1, 5:1 |
| Insertion Loss (Max) | 1:1, 5:1 | ||
Mechanical
| Size | 260 x 235 x 88 mm | Width | 235mm |
| Height | 88mm | Length | 260mm |
| Weight | 950g | Connector Type | Type-N |
| Input Connector | BNC | Size / Dimension | 260 x 235 x 88mm |
| Pulse Width Distortion (Max) | 20ns | ||
Product Info
| Function | 3 | Calibration | RSCAL |
| Description | Universal Frequency Counter | Part Number | TF960 |
| Model Number | TF960 | Display Style | LCD, 10 digits |
| Measurement Type | 100s | Internal Connection | 9999999999 |
| Other Specifications | 100s | For Use With/Related Products | Mains power battery charger |
Environmental
| Operating Temperature | +40°C | ||
