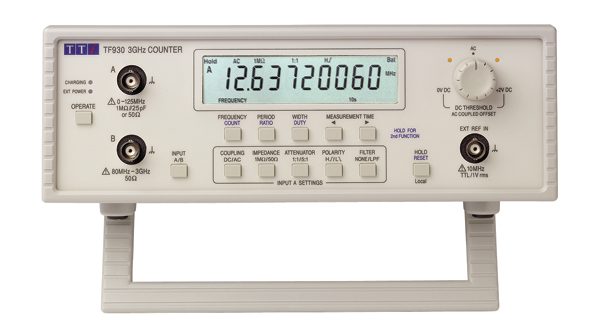

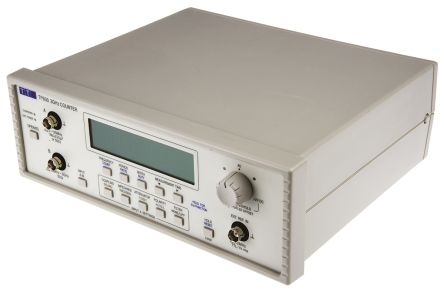

TF930
| Manufacturer | |
| Description | 3 GHz Frequency Counter USB Frequency meter; Channels:2; f range:0,001÷3000MHz; 5÷40°C Frequency Counter, 3 GHz, TF930, Aim-TTi Aim-TTi 3000MHz 计频器 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| Standards | EN 61010 | ||
Electrical
| Interface | USB | Resolution | 20ns |
| Input Signal | Frequency | Power - Input | NiMH |
| Counter/Timers | 9999999999 | Voltage Rating | 30V ac/dc |
| Frequency - Max | 3000MHz | Frequency - Min | 0.001 Hz |
| Frequency Range | 0,001...3000MHz | Input Impedance | 1 MΩ, 50 Ω |
| Voltage - Supply | 30V交流/直流 | Attenuation - Typ | 1:1, 5:1 |
| Number of Channels | 2 | Insertion Loss (Max) | 1:1, 5:1 |
Mechanical
| Size | 260 x 235 x 88 mm | Width | 260mm |
| Height | 88mm | Length | 235mm |
| Weight | 950g | Connector Type | Type C - European Plug, Type G - British 3-pin |
| Input Connector | BNC | Size / Dimension | 235 x 260 x 88mm |
| Pulse Width Distortion (Max) | 20ns | ||
Product Info
| Function | 2 | Plug Type | Type C - European Plug, Type G - British 3-pin |
| Meter Type | frequency meter | Description | Frequency Counter, 3 GHz |
| Part Number | TF930 | Model Number | TF930 |
| Display Style | LCD, 10 digits | Number of Units | 1 |
| Internal Connection | 9999999999 | Other Specifications | 1 |
| For Use With/Related Products | Mains power battery charger | ||
Environmental
| Operating Temperature | +40°C | Environment Protection | 2 |
