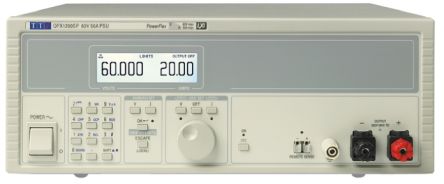

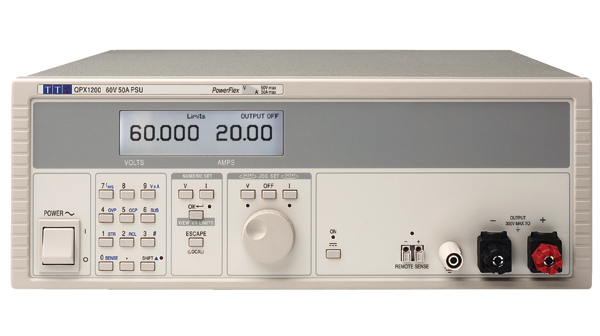

QPX1200SP
| Manufacturer | |
| Description | 1200W 1 Output Digital Bench Power Supply, 0 to 60V, 0 to 50A Pwr sup.unit: programmable laboratory; Channels:1; 0÷60VDC Laboratory Power Supply 1 Ch. 0...60 VDC 50 A, Programmable, QPX1200SP, Aim-TTi Aim-TTi 台式电源, 1 输出, 0 → 60V, 0 → 50A, 1.2kW |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | Compliant | ||
Electrical
| Noise | ≤3mVrms | Ripple | 3 |
| Interface | Analogue | Power - Input | 230VAC 50/60Hz |
| Power - Rated | 1200W | Current - Test | 10 |
| Voltage Rating | 0 → 60V | Current - Output | 0 → 50A |
| Voltage - Supply | 110 → 240V ac | Number of Outputs | 1 |
| Output Resolution | 0.01A | Power Supply Type | programmable laboratory |
| Resolution (Bits) | 1 | Number of Channels | 1 |
| Current Rating (Max) | 0 → 50A | Voltage - Output (Max) | 60 |
| Voltage Regulation - Load | ≤0,01% ± 5mV | ||
Mechanical
| Weight | 11.35 kg | Package Quantity | 1 |
| Size / Dimension | 130 x 356 x 413mm | Number of Positions | 2 |
Product Info
| Spg | 1 | Type | Digital |
| Calibration | RSCAL | Programmable | Programmable |
| Display Style | LCD | Characteristics | see |
| Number of Units | 1 | Equipment Part Numbers | software |
| Number of Monitor Fields | 2 | ||
Environmental
| Operating Temperature | +5°C | Environment Protection | 2 |
| Maximum Temperature Limit | +40°C | ||
