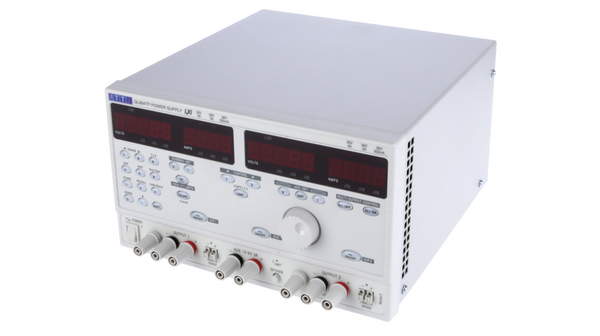

QL564TP
| Manufacturer | |
| Description | RSCAL(7531466) PSU 3 output standard & b PSU 3 output standard & bus interface UKAS(7531466) PSU 3 output standard & bu Laboratory Power Supply 3 Ch. 0...56 VDC 3 A / 0...56 VDC 3 A / 1...6 VDC 3 A, Programmable, QL564TP, Aim-TTi Aim-TTi 台式电源, 3 输出, 0 → 25 V, 0 → 56 V, 1 → 6 V, 3 A, 0 → 2 A, 0 → 4 A, 242W |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | Compliant | ||
Electrical
| Ripple | 0.35 | Interface | USB |
| Power - Rated | 242W | Current - Test | 0.1 |
| Voltage Rating | 0 → 25 V, 0 → 56 V, 1 → 6 V | Current - Output | 0 → 2 A, 0 → 4 A, 3 A |
| Voltage - Supply | 115 V ac, 230 V ac | Number of Outputs | 3 |
| Resolution (Bits) | 1 | Current Rating (Max) | 0 → 2 A, 0 → 4 A, 3 A |
| Voltage - Output (Max) | 6 | ||
Mechanical
| Size | 280 x 160 x 290 mm | Weight | 10.6 |
| Connector Type | 接线柱端子 | Output Connector | Binding Post Terminal |
| Number of Positions | 4 | ||
Product Info
| Type | Digital | Calibration | RSCAL |
| Programmable | Programmable | Number of Monitor Fields | 4 |
Environmental
| Operating Temperature | +5°C | Maximum Temperature Limit | +40°C |
