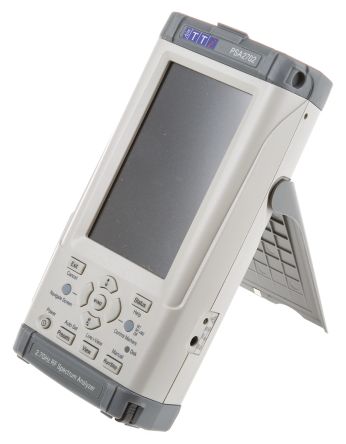

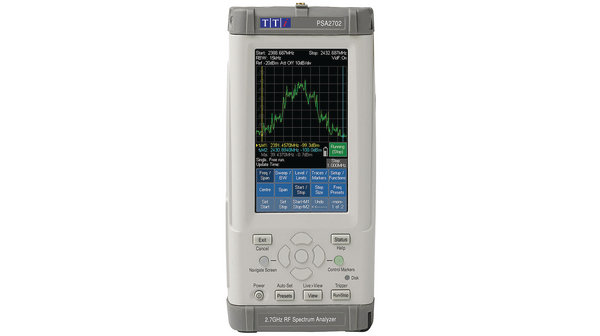

PSA2702
| Manufacturer | |
| Description | Spectrum analyser handheld 2.7GHz Spectrum analyzer; Display 1:TFT 480x272 Touch Screen; ~8h Spectrum Analyser 2.7 GHz, PSA2702, Aim-TTi Aim-TTi , 1 通道 手持式 频谱分析仪, 1 MHz → 2.7 GHz, 4.3 in TFT |
| Category |
对参数有疑问？问 AI 助手
Compliance
| Part Status | 2 years | ||
Electrical
| Input | SMA Connector | Channels | 1 |
| Frequency | frequency resolution: 1kHz, range: 1MHz...2700MHz | Interface | USB |
| Scan Rate | 连续，单个 | Modulation | AM |
| Resolution | 2700 | Wavelength | Live, Reference, View |
| Display Type | 4.3 in TFT | Power - Input | mains power supply, built-in battery |
| Operating Mode | Centre + Span, Start + Stop | Frequency - Max | 2700MHz |
| Frequency - Min | 1 MHz | Frequency Range | 2.7 |
| Input Impedance | 50Ω | Voltage - Supply | 2.699 |
| Number of Channels | 1 | Frequency Stability | ±10ppm |
| Voltage - Input (Min) | 0 | Amplitude (Level) Range | unit: dBm or dBµV, reference level: -20dBm or 0dBm (87dBµV or 107dBµV), range: 85dBm from reference level |
Mechanical
| Size | 192 x 92 x 49 mm | Width | 49mm |
| Height | 192mm | Length | 92mm |
| Weight | 560g | Bandwidth | 2700MHz |
| Operating Force | 8 h | Package Quantity | 1 |
| Size / Dimension | 92 x 49 x 192mm | ||
Product Info
| Spg | 1 | Mode | Continuous, Single |
| Type | 可充电锂离子电池 | Design | Handheld |
| RF Type | SMA 连接器 | Label Type | 双、无、单 |
| Meter Type | spectrum analyzer | Handle Type | Handheld |
| Part Number | PSA2702 | Model Number | PSA2702 |
| Display Style | TFT 480x272 Touch Screen | Display Units | dBm |
| Battery Series | ~8h | Simplex/Duplex | 手持式 |
| Number of Units | 1 | Actuator Marking | Dual, None, Single |
| Functions, Extra | Battery Operation | Battery Chemistry | Rechargeable Lithium-Ion |
| Diagonal Screen Size | 480 x 272pixel | For Use With/Related Products | Mains power battery charger |
Environmental
| Battery Life | 8 h | Operating Temperature | +40°C |
